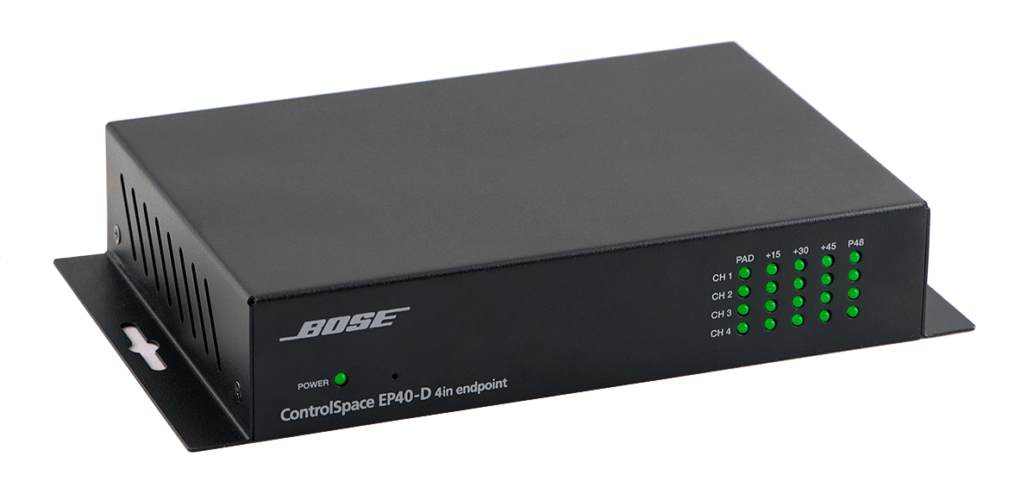

Bose – ControlSpace EP40-D

I/O Interfaces

More details

Similar Products

micromedia-dio-xlr-dc
  • Micromedia

Micromedia – Digimedia DIO XLR DC

Digimedia DIO XLR DC is a professional high-end studio-grade 2 channel Dante™ interface with digital AES-3 XLR input and output. Input has high quality SRC with typical SN 144dB. There is Dante Domain Manager and AES67 support build in. Interface needs 12V or external PoE (Power over Ethernet) splitter. Two professional high quality Neutrik XLR audio connectors. Digimedia DIO XLR DC is a professional high-end studio-grade 2 channel Dante™ interface with digital AES-3 XLR input and output. Input has high quality SRC with typical SN 144dB. There is Dante Domain Manager and AES67 support build in. Interface needs 12V or external PoE (Power over Ethernet) splitter. Two professional high quality Neutrik XLR audio connectors.
    I/O Interfaces
See the product
rdl-ddb-bn31_1200px|rdl-ddb-bn31_1200px
  • RDL

RDL – DDB-BN31

The DD-BN31 is a complete wall-mounted Dante audio network interface. It features two XLR mic or line inputs, one stereo Mini-jack line input and one stereo Mini-jack line output on the front panels, plus two line outputs on a rear-panel detachable terminal block.  The DD-BN31 is a complete wall-mounted Dante audio network interface. It features two XLR mic or line inputs, one stereo Mini-jack line input and one stereo Mini-jack line output on the front panels, plus two line outputs on a rear-panel detachable terminal block. Special software is not required to configure the DD-BN31. Each XLR input provides three switches that may be set from the front of the unit when the cover plate is not installed. One switch enables or disables P48 phantom for that input; the second switch selects the mic or line gain range; the third switch sets the gain. The Mini-jack input provides a switch to configure the input for stereo or summed mono. The Mini-jack output provides a switch to configure the output for stereo or left-channel mono. Each rear-panel output provides a switch to set the output to balanced professional or unbalanced consumer level. The DD-BN31 fits a standard US dual-gang electrical box or an RDL WB-2 back box for installations in thinner European or equivalent walls. The DD-BN31 is PoE powered, and is available in multiple finishes with optional customized graphics. The two XLR inputs are each converted to a separate Dante network transmit channel. Three gain settings are switch-selectable for both the mic and line input ranges to match condenser or dynamic mic levels and standard line levels. The Mini-jack left and right inputs are each converted to a separate Dante network transmit channel. Each input provides a network digital audio level of -18 dBFS for an unbalanced -10 dBV input. The input is equipped with a selector to sum the left and right Mini-jack inputs. The summed signal feeds both Dante transmit channels. Two Dante audio channels are converted to unbalanced line level to feed the front-panel Mini-jack. Each channel provides -10 dBV unbalanced for a network digital audio level of -18 dBFS. The left and right Mini-jack channels are normally fed from Dante receive channels 3 and 4 (stereo). The Mini-jack output is equipped with a selector to feed both output channels from Dante receive channel 3 (mono). This selector may be set from the front of the unit when the cover plate is not installed. Two Dante audio channels are converted to balanced line level on the rear-panel detachable terminal block. Each output provides +4 dBu balanced for a network digital audio level of -18 dBFS. Each output is equipped with a selector to unbalance the audio and attenuate the level to -10 dBV. These switches are located on the top of the chassis and are set by the installer prior to mounting the unit. The rear-panel outputs are intended for connection to RDL AMS connectors mounted in Decora-style plates that match the DD-BN31. AMS audio connectors include RCA, Mini and XLR jacks. The output plate may be located together with the DD-BN31 in a triple gang box or may be mounted remotely in a single box. Valid PoE power and synchronization to the Dante network are indicated by green LEDs visible from the front of the unit. The DD-BN31 is a professional grade product with discrete mic preamplifiers for studio quality fidelity and low noise performance, coupled through metal XLR jacks housed in a stainless steel chassis with dual powder-coated or stainless steel Decora front plates. The DD-BN31’s superior performance specifications make it ideally suited to the most demanding installations, and an exceptional value in commercial networked audio systems. This full-featured product is engineered and manufactured in the U.S.A for continuous duty in demanding installations. Designed to outperform. Built to last.
    I/O Interfaces
  • Dante Ch: 4x4
  • 24-bit
See the product
esi-planet22x
  • ESI

ESI – planet 22x

planet 22x is a revolutionary new audio interface that combines the most modern networking audio technology based on the popular Dante protocol with the requirements of a professional high end desktop recording audio interface in studio and in mobile environments. planet 22x is a revolutionary new audio interface that combines the most modern networking audio technology based on the popular Dante protocol with the requirements of a professional high end desktop recording audio interface in studio and in mobile environments. The audio interface is equipped with ultra high quality 24-bit / 96kHz AD converters with 118dB(a) dynamic range and 24-bit / 96kHz DA converters with 123dB(a) dynamic range. The two balanced analog line inputs can also be used with the integrated ultra low noise and precise professional microphone preamplifiers and the special Hi-Z instrument input stages. The balanced master line output can be controlled with a high precission master level step-potentiometer, plus there is a high quality headphone amplifier on the unit. planet 22x can be powered either via an included 12V DC power supply or via the network cable as a PoE (Power over Ethernet) device. This makes it possible to use the interface even when there is no power outlet close by. By supporting Dante, planet 22x combines and works with any other Dante devices in an IP audio network, which makes it also a cost effective solution to extend any existing network with additional audio channels, yet it has also been designed to be a flexible professional audio interface using the Dante Virtual Soundcard for any modern recording applications on both Mac and PC - in any professional studio environment. Features
  • Dante network audio interface with 2 analog inputs and 2 analog outputs
  • 2 balanced XLR / TRS combo inputs
  • 2 balanced XLR outputs
  • high end 24-bit / 96kHz AD converters with 118dB(a) dynamic range
  • high end 24-bit / 96kHz DA converters with 123dB(a) dynamic range
  • per channel professional low noise microphone preamplifiert with adjustable gain
  • +48V phantom power for connected microphones
  • per channel high quality Hi-Z instrument input stage
  • precise step-potentiometer to control the master output level of the line outputs
  • high quality adjustable headphone output
  • 12V DC power supply included
  • power supply via network cable possible (PoE / Power over Ethernet)
  • license of the Dante Virtual Soundcard for Mac / PC included
  • supports Windows 7, Windows 8.1 and Windows 10 with WDM and ASIO 2.0
  • supports macOS via CoreAudio
  • includes license of Deckadance LE from Stanton
  • includes Bitwig Studio 8-Track digital audio workstation software
  • dimensions roughly 17.5cm x 12.0cm x 4.5cm
    I/O Interfaces
See the product
