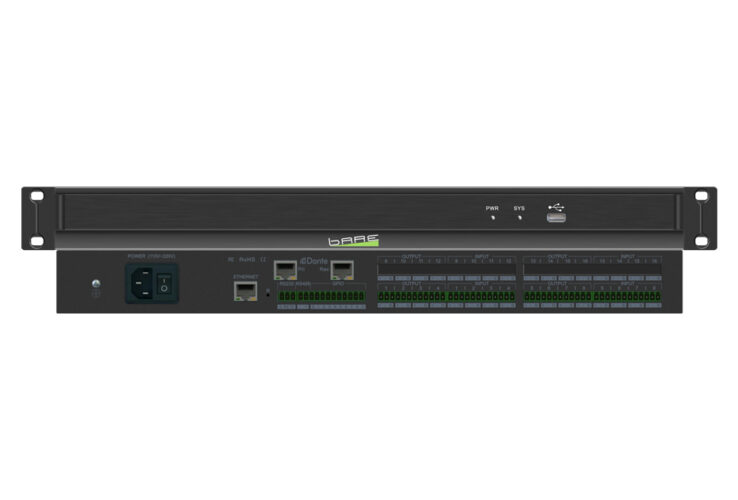

BARE – BR-108B

I/O Interfaces

More details

Similar Products

rdl-dds-bn2m_1200px
  • RDL

RDL – DDS-BN2M

The DD-BN2M is a complete wall-mounted Dante audio network interface. It features two XLR mic or line inputs on the front panels, plus two line outputs on a rear-panel detachable terminal block. The DD-BN2M is a complete wall-mounted Dante audio network interface. It features two XLR mic or line inputs on the front panels, plus two line outputs on a rear-panel detachable terminal block. Special software is not required to configure the DD-BN2M. Each XLR input provides three switches that may be set from the front of the unit when the cover plate is not installed. One switch enables or disables P48 phantom; the second switch selects the mic or line gain range; the third switch sets the gain. Each rear-panel output provides a switch to set the output to balanced professional or unbalanced consumer level. The DD-BN2M fits a standard US dual-gang electrical box or an RDL WB-2 back box for installations in thinner European or equivalent walls. The DD-BN2M is PoE powered, and is available in multiple finishes with optional customized graphics. The two XLR inputs are each converted to a separate Dante network transmit channel. Three gain settings are switch-selectable for both the mic and line input ranges to match condenser or dynamic mic levels and standard line levels. Two Dante audio channels are converted to balanced line level on the rear-panel detachable terminal block. Each output provides +4 dBu balanced for a network digital audio level of -18 dBFS. Each output is equipped with a selector to unbalance the audio and attenuate the level to -10 dBV. These switches are located on the top of the chassis and are set by the installer prior to mounting the unit. The rear-panel outputs are intended for connection to RDL AMS connectors mounted in Decora-style plates that match the DD-BN2M. AMS audio connectors include RCA, Mini and XLR jacks. The output plate may be located together with the DD-BN2M in a triple gang box or may be mounted remotely in a single box. Valid PoE power and synchronization to the Dante network are indicated by green LEDs visible from the front of the unit. The DD-BN2M is a professional grade product with discrete mic preamplifiers for studio quality fidelity and low noise performance, coupled through metal XLR jacks housed in a stainless steel chassis with dual powder-coated or stainless steel Decora front plates. The DD-BN2M’s superior performance specifications make it ideally suited to the most demanding installations, and an exceptional value in commercial networked audio systems. This full-featured product is engineered and manufactured in the U.S.A for continuous duty in demanding installations. Designed to outperform. Built to last.
    I/O Interfaces
See the product
ru-lb4_400px|ru-lb4_400px
  • RDL

RDL – RU-LB4

The RU-LB4 is a high quality line-level bi-directional Dante network interface. The RU-LB4 converts four line-level audio sources to Dante network channels, and four Dante network audio channels to balanced line level. Input gain trimmers and LED audio level indicators are provided. Model RU-LB4P operates from PoE. The RU-LB4 is a high quality line-level bi-directional Dante network interface. The RU-LB4 converts four line-level audio sources to Dante network channels, and four Dante network audio signals to balanced line level. The line level inputs accept unbalanced or balanced signals. Line-level outputs are balanced. The front panel features signal LEDs that indicate audio presence for each of the received network signal channels and a gain trimmer with an associated Dual-LED VU meter for each audio input.  Balanced +4 dBu audio levels correspond to a network digital audio level of -18 dBFS. The noise floor is better than 80 dB below operating level. The RU-LB4 is also available in a PoE version (RU-LB4P). If PoE power and an external 24 Vdc supply are both feeding an RU-LB4P, the unit will run from the external supply and will seamlessly switch over to PoE power upon loss of the external supply.
    I/O Interfaces
See the product
APOGEE-SYMPHONY-IO-MkII-8X8MP8X8MP-PTHD-DANTE-REAR-VIEW-2000-1
  • Apogee

Apogee –  Symphony I/O Mk II Connect 8×8 MP

The Symphony I/O Mk II 8×8 MP and Symphony I/O Mk II 16 MP Connect series audio interfaces deliver Symphony-quality sound with robust, high-performance AD/DA converters and Apogee’s Advanced Step Gain Architecture™ mic preamps at unprecedented prices. Using cutting edge components and a simplified, optimized analog circuit design, Apogee engineers are able to place more AD/DA converters and mic preamps on a single module board. The result is a single Symphony I/O Mk II with up 32 mic preamps at an unprecedented price for Symphony Quality and an extremely competitive price for the market. With industry leading sound quality and scalable, high density I/O configurations for Dante®, Pro Tools® HD and Thunderbolt® systems, the Symphony Connect series is the ideal choice for broadcast, live sound, education, post, house of worship and recording studio facilities.

    I/O Interfaces
See the product
