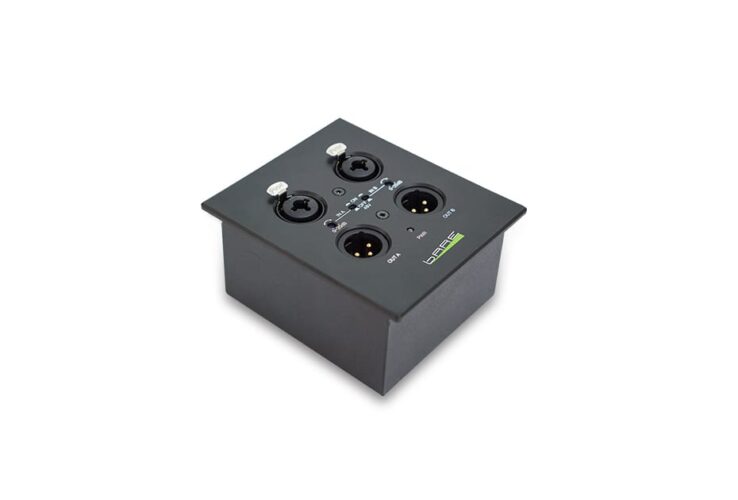

BOX 2 * 2 / IO is a powerful digital signal processor that does not require extensive learning. It provides 2 microphone / line inputs and 2 line outputs with phantom power. Embedded installation, with many high-quality features, no design, no learning at all. A complete audio processing solution for the optimization of specific locations and systems. Suitable for retrofitting Dante ™ audio applications and upgrading traditional audio systems.
SAS is well known for it’s history in high capacity, long-term reliable audio routing. Today, the tradition continues with the Core 64 Router, a 6 rack unit modular routing system with high capacity I/O and cost-saving, compact design. The Core 64 provides a backbone for the SAS digital audio network with modular Dante AoIP, Long Distance Codec, AES, and Analog cards; numerous DSP engines; audio and power redundancy. Numerous Core 64 frames can be combined to provide hundreds of thousands of routable I/O. The Core 64 is effectively utilized in TV and Radio broadcast, surround sound live stage performances and in high volume venues such as football and soccer stadiums.
Allows the conversion and distribution of 4 analog sources on Dante™ network • detachable euroblock input/output connectors • PoE (provided) or 12V power supply (not provided)
Technical data:
Type: Dante™ interface 4x4
Input Connectors: 4 x euroblock
Output Connectors: 4 x euroblock
Audio network connector: RJ45
Input impedance: > 1.8 kohms
Maximum input level: +8 dBu
Output impedance: 200 ohms
Maximum output level: + 20 dBu
Frequency response: 20 Hz - 20 kHz (+/- 1 dB)
THD+N: < 0.02%
Power supply: PoE 802.3 af (provided) or 12 V external (not provided)
Consumption: 10 W max
Dimensions: 52 x 81 x 121 mm
Weight: 357 g
The Clockaudio Dante Transporter is an advanced professional Dante communication product which combines audio and control transmission across a standard IP network. Based on high performance and pre-configurable hardware platform it guarantees perfect sound quality. The CDT 100 Mk3 has a variety of uses including but not limited to boardrooms, video and conference rooms, or any place else where multiple microphones and control devices are connected back to the AV equipment cabinet.
Features:
• Easy to install with under table mounting
• Dante Audio and control signals transported over standard IP network
• 4 audio inputs, with gain control, high pass filters and Phantom Power
• 2 line-level outputs with high pass filters
• Up to 6 units may be daisy chained
• 4 Touch Switch ports compatible with all logic enabled Clockaudio devices.
• Open API for interfacing with Control Systems
• Compatible with any Dante capable audio DSP
