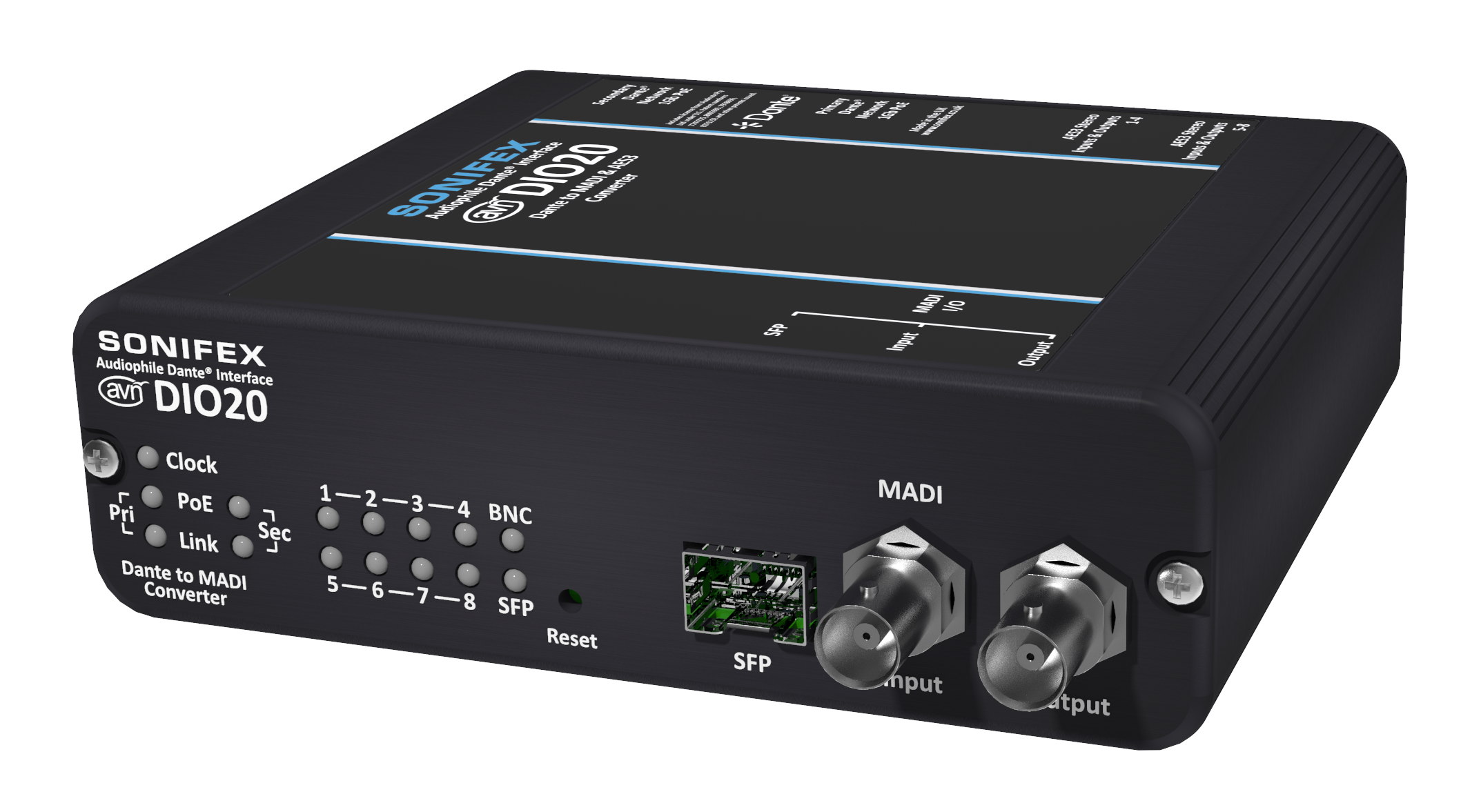

The AVN-DIO20 is a MADI and AES3 to Dante bridging device allowing MADI to connect bidirectionally with AoIP, together with 8 stereo channels of AES3. This simple plug and play audio interface provides a quick and convenient method of connecting legacy MADI equipment to the Dante AoIP audio network.
The DN4 microphone interface is a key part of the Audix Dante | AES67 Integrated Microphone System, the fast, trouble-free way to stream Audix audio performance through Ethernet networks. High-quality audio and all microphone functions - including on-off contact closure and LED status indicators - are available through a single CAT5 - CAT7 cable with RJ45 connections at both interface and microphone. This simple configuration eliminates wiring errors, accelerates installation, and reduces cost.
The DN4 features four inputs for Audix RJ45-equipped, single-element microphones and two 5V logic outputs per port, with source/sink capability for LEDs that are controlled by network-connected DSPs and one logic input per port for buttons. Low-pass and high-pass filter settings are available on each audio channel, as are eight selectable gain levels, with all settings configurable via software.
Audio Features
Dante® Features
Power Features
