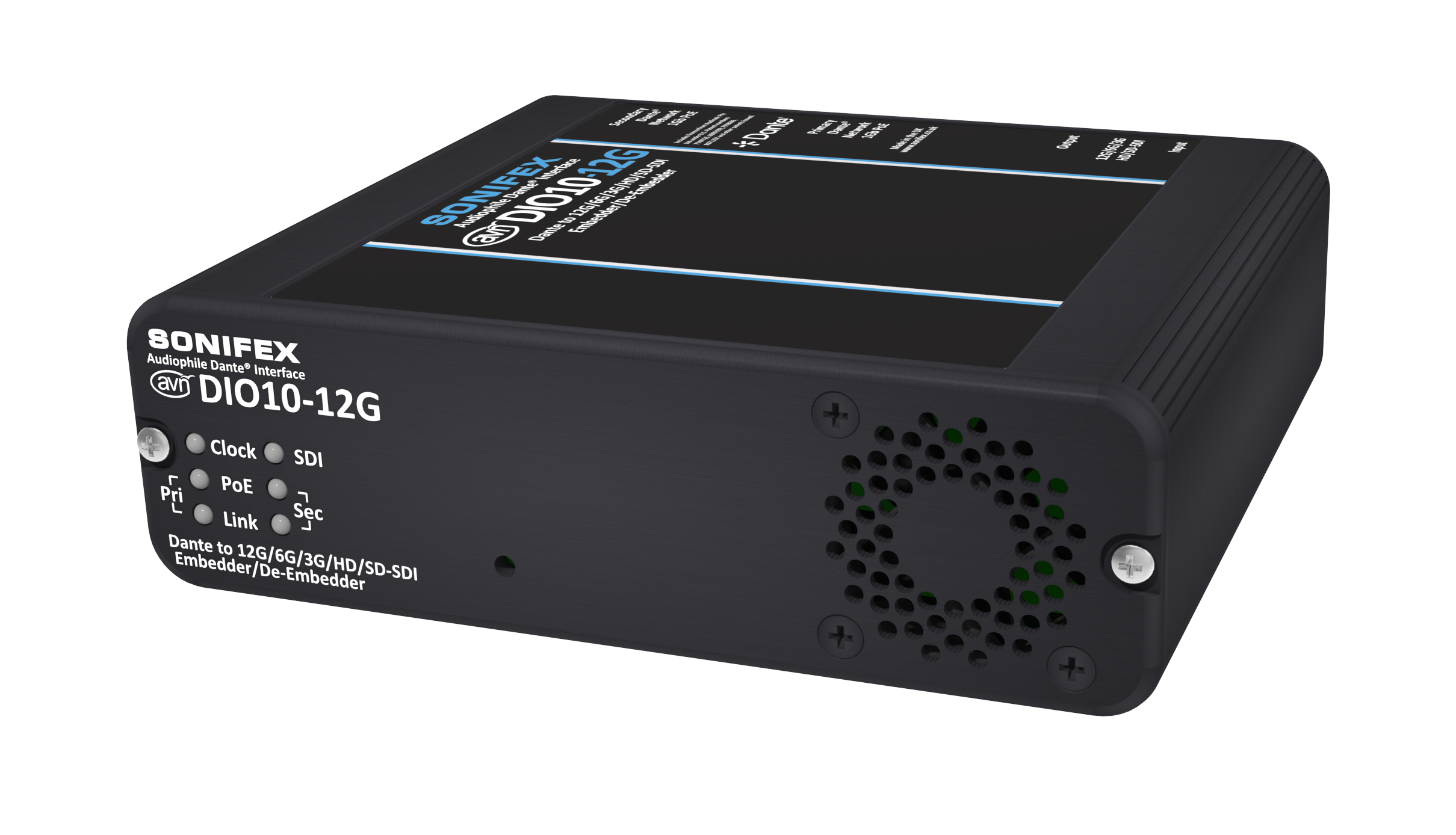

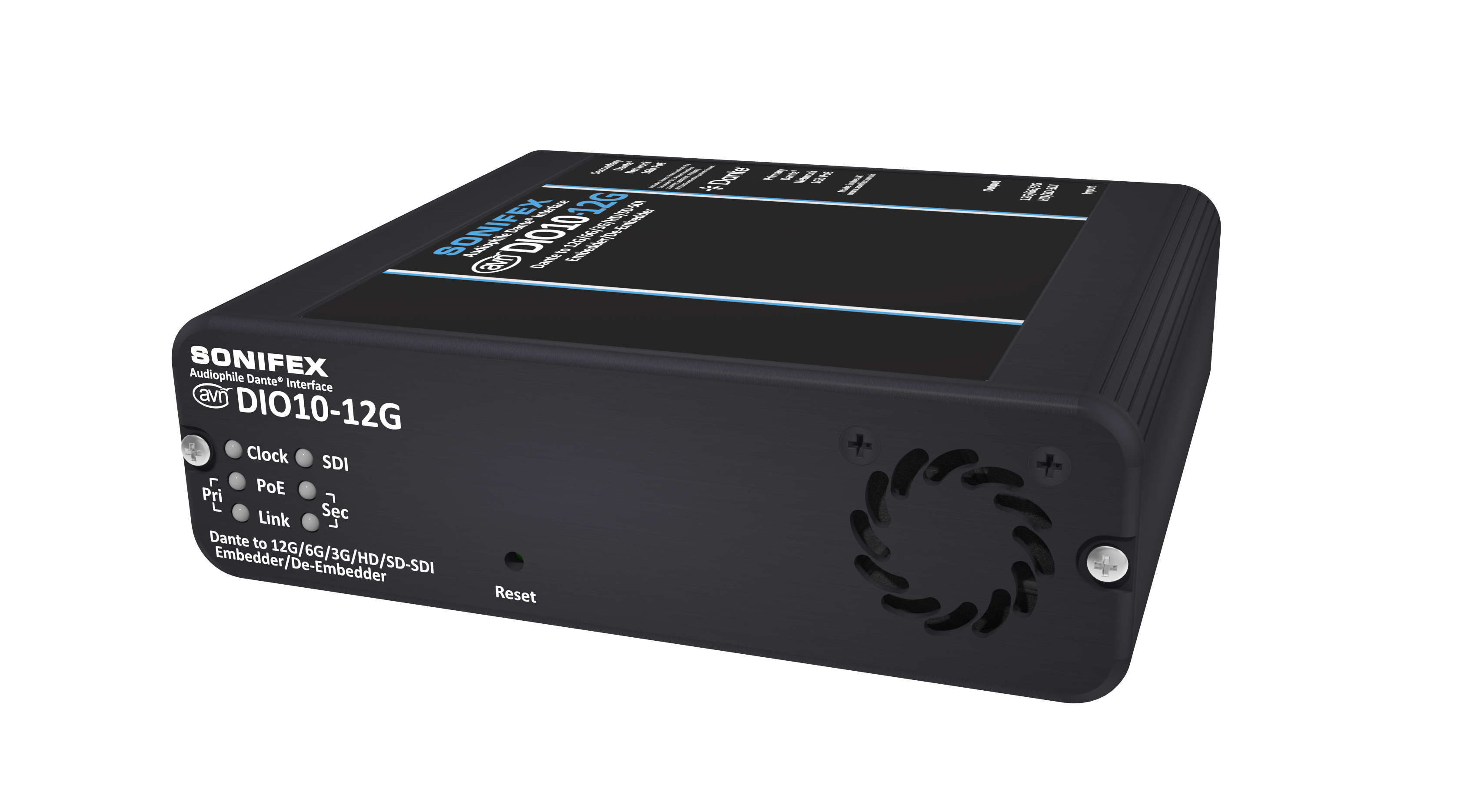

An upgrade to the extremely popular AVN-DIO10, the new AVN-DIO10-12G now adds support for the full range of SDI standards from SD-SDI through to 12G-SDI. The AVN-DIO10-12G can be used for simultaneous embedding and de-embedding of up to 64 channels. This simple plug and play audio/video interface provides a convenient and elegant method of connecting legacy 12G/6G/3G/HD/SD-SDI equipment to the Dante® AoIP audio network.
The FA-9600 dual channel signal processor simplifies all types of video conversion and offers a wide range of audio processing.
The FA-9600 is much more than a basic frame synchronizer. With optional expansion cards and software, the unit offers MADI/Dante/analog audio I/O, 12G-SDI/Quad Link 3G-SDI I/O, up/down/cross conversion, HDR/SDR conversion, and SFP+ module support.
・ 3G/HD/SD-SDI 2 inputs and 2 outputs with distribution output by each output, HDMI 1 input and 1 output.
・ Dual channel of frame sync, proc amp, colorimetry converter, color corrector, frame delay and clip function.
・ Dual channel embedded audio (16 channels, HDMI is up to 8 channels); AES/EBU I/O selectable for 4 inputs, 2 inputs/2outputs, or 4 outputs. (4 channels of stereo, unbalanced); audio multiplex and demultiplex function.
・ Gain control, SRC, down mix, re-map, mute, and audio delay functions.
・ Optional audio interface cards are available: AES/EBU I/O, analog audio I/O, MADI interface, or Dante interface.
