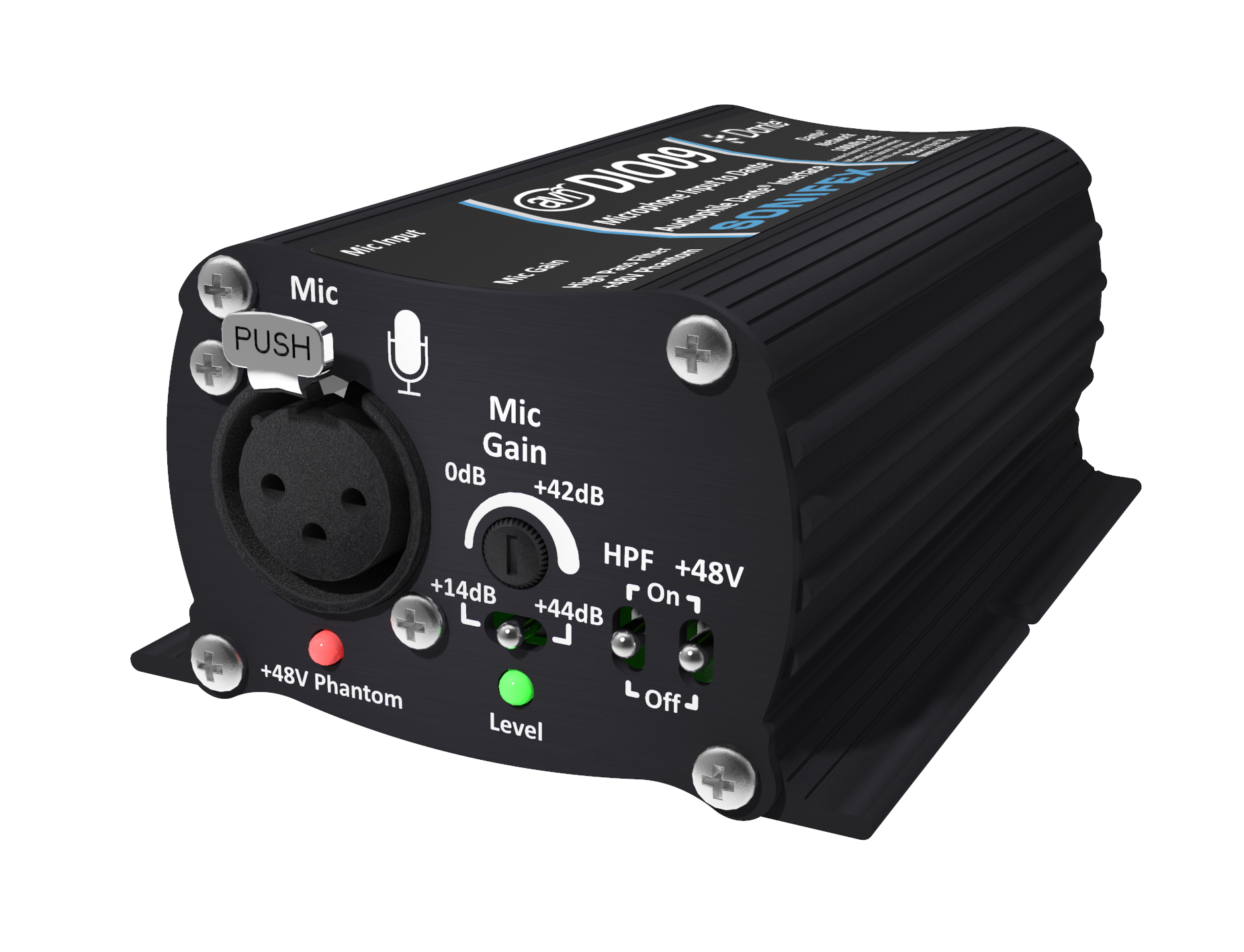

AVN-DIO09

I/O Interfaces

More Details

Similar Products

yamaha-RSio-64D_1200px|yamaha-RSio-64D_1200px
  • Yamaha

Yamaha – RSio64-D

The RSio64-D is an audio interface that can convert between Dante and Mini-YGDAI formats for up to 64 inputs and 64 outputs.  The RSio64-D is an audio interface that can convert between Dante and Mini-YGDAI formats for up to 64 inputs and 64 outputs. It provides versatile routing capability as well. Four Mini-YGDAI card slots allow cards for a wide variety of input/output formats as well as processing functions to be connected to a Dante network for live sound, broadcast, recording, post production, and other applications. The RSio64-D also supports remote setup from CL and QL series consoles. Features
  • Accepts a wide range of Mini-YGDAI input/output and processing cards
  • Seven general routing presets, including routing between Mini-YGDAI cards
  • Supports matrix patching from R Remote V3 or a CL/QL series console
  • Sample rate converters for all four Mini-YGDAI slots
  • EXT DC INPUT for redundant power supplies
  • Supports Dante redundancy (primary/secondary)
    I/O Interfaces
  • Dante Ch: 64x64
  • 24-bit, 32-bit
See the product
monacor-international-dtra-2
  • Monacor

Monacor – DTRA-2

The DTRA-2 is a Dante I/O box, for converting Dante streams into analogue audio signals.  The DTRA-2 is a Dante I/O box, for converting Dante streams into analogue audio signals.
  • 1 x Dante™ input (EtherCon/RJ45)
  • 1 x aux input (3.5 mm stereo jack)
  • 2 x audio output (XLR, bal.)
  • 1 x monitor output (3.5 mm stereo jack)
  • Output adjustable via recessed potentiometer (0-15 dBu)
  • Individually switchable noise generator for the outputs
  • Encoding/decoding: 16/24/32 bits
  • Sample rates: 48/88.2/96 kHz
  • LED indication for level control, PoE, external power supply and link
  • Metal housing
  • Power is provided via PoE or optional power supply
  • Dimensions: 81 x 45 x 153 mm
  • Weight: 400 g
    I/O Interfaces
See the product
DP02_018_DA-60PWR-ASM
  • Danacoid

Danacoid – DA-120DD

Dante POE Power Module

Specifications

System Power Efficiency> 70%
SNR84 dB
Background Noise< 130 uV
Interface
Input Port1 Dante Audio (RJ-45)
Output Port1 Analog Audio (Terminal Block)
Power
PoE StandardIEEE 802 3bt (4PPoE)
PoE Power85 W, 8 ohms; 120 W, 4 ohms (peak power)
Enclosure
Chassis MaterialMetal
Chassis ColorBlack
Chassis Dimensions (Hight×Width×Depth)162×80×42 mm
Environment
Operating Temperature+32 to +104 °F (0 to +40 °C)
Humidity10% to 90% RH (non-condensing)
Compliance
Regulatory ComplianceFCC, CCC, CE, RoHS
    I/O Interfaces
See the product
