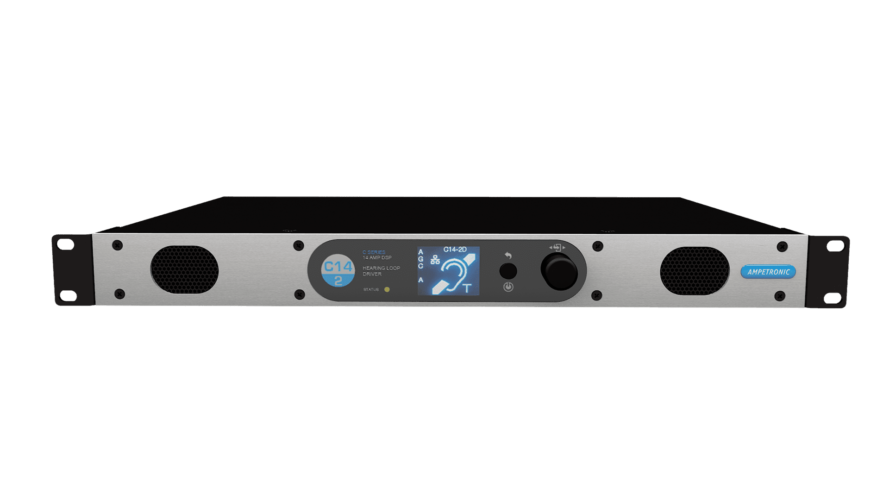

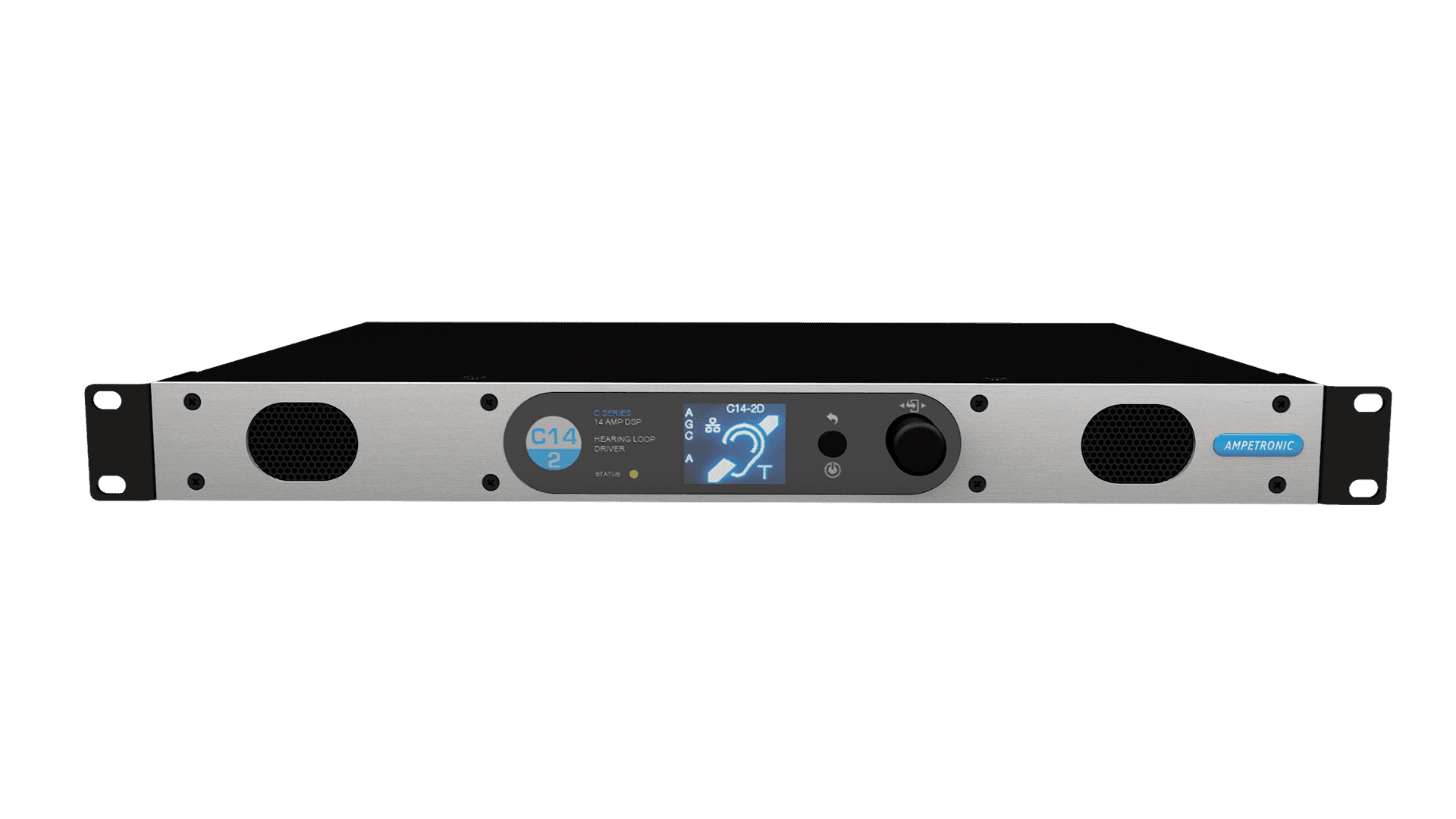

Ampetronic – C14-2 Dante

Amplifiers

More details

Similar Products

µMA04POE
  • Innosonix

µMA04/POE

The µMA04/POE delivers an impressive 120W per channel at 4Ω and 8Ω and can bridge two channels to achieve 240W at 8Ω. This powerful solution also includes an extensive built-in DSP package, featuring industry-leading processing power. Deploying this compact yet powerful amplifier is remarkably simple, requiring just one RJ45 connection. The slim design of the µMA04/ POE expands your installation options. Dante, ready straight out of the box, network multiple devices via a centralized switch to handle repetitive, time-consuming tasks quickly and efficiently, while achieving exceptional sonic results.
    Amplifiers
  • AES67 Enabled
See the product
ied-1581NA-D
  • AtlasIED

AtlasIED – IED1581NA-D

This product has reached "end-of-life" and is discontinued by the manufacturer The 1581NA-D is a compact power amplifier module capable of driving small loudspeaker loads in a GLOBALCOM® system. It provides a single output with 8 watts of power into an 8Ω load.The audio inputs to the module are through the Ethernet audio network and are configured from the GLOBALCOM® System Management Center. The 1581NA-D model allows the use of Dante™ audio networking protocols.The 1581NA-D is powered using standard PoE and draw a maximum power of 13 watts. If PoE equipment is not used, an input is provided for an external +48VDC power supply. A green power indicator LED is included to show that the unit is powered on. Each channel has a green LED indicator that illuminates when signal is present and a yellow LED to indicate clipping. Another yellow LED illuminates to indicate that the device is in thermal overload. When this condition occurs, the device will stop passing signal until the condition has cleared.The amplifier is provided in an enclosure that either mounts to a DIN rail or is screwed down on a panel or wall to allow for convenient installation in remote closets close to the loudspeaker zone.Features
  • Available in single-channel or two-channel configurations
  • Available with Dante™ audio network interface
  • Control and configure using a web browser and GLOBALCOM® System Management Center
  • Settings storage in non-volatile memory
  • Full integration with theAtlasIED GLOBALCOM® vACS
  • Utilizes IEEE 802.af Power over Ethernet (PoE)
  • Removable connectors for easy installation
  • Rugged DIN-rail or panel/wall mount enclosure
    Amplifiers
See the product
stewart-audio-CVA40-1-CV-D
  • Stewart Audio

Stewart Audio – CVA40-1-CV-D

The CVA40-1-CV-D is a single channel PoE++ (60W port power or injector) Dante™ amplifier in a plenum-rated, compact, flange mount enclosure. The CVA40-1-CV-D is a single channel PoE++ (60W port power or injector) Dante™ amplifier in a plenum-rated, compact, flange mount enclosure.
  • One Dante™ input channel
  • Single category cable solution for both signal and power
  • Plenum rated package
  • AES67 support
The PoE++ Amplifier Series leverages the higher power 802.3bt PoE++ standard (60W port power) to power two amplifier models, the AV20-2-LZ-D (20W x 2 @ 4/8Ω) and the CVA40-1-CV-D (40W x 1 @ 70V/100V). These compact Dante™ amplifiers are designed to be single cable solutions for small/medium zones without the need for a local power outlet. This amplifier series leverages the ubiquitous nature of existing CAT 5e/6 cable in zones and also the inexpensive process of pulling new cable to zones. It creates an opportunity to reduce labor costs with a single, reliable, twisted pair cable that carries power and data to where you need it. Simply plug the PoE++ CAT 5e/6 cable into the amplifier, wire the speakers and route audio and repeat for the next zone. The plenum rating and compact size, allows this amplifier series to be placed in the air handling space, closets, the rack or any other convenient space. The confluence of readily available and inexpensive CAT 5e/6 cabling, Dante™ networked audio and quick installation, makes this amplifier series an essential problem solver.
    Amplifiers
See the product
