Product Information

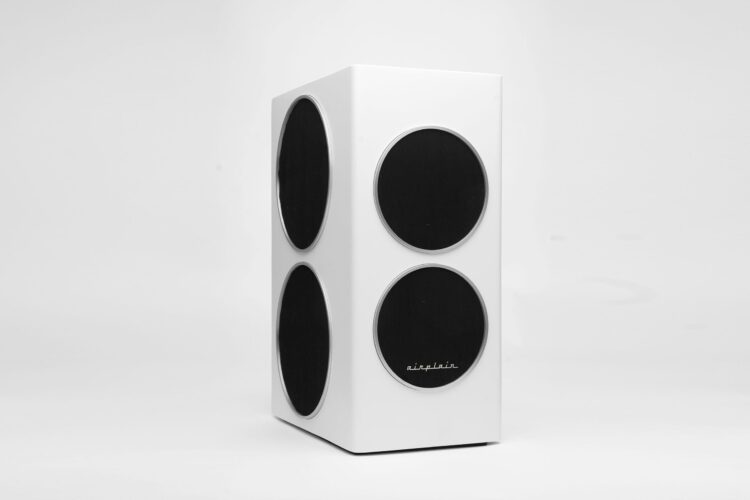

Fullrange phase linear active speaker system with almost perfect impulse response. Two 7″ ultra long throw woofers, 1x 4″ ultra low distortion midrange, 1 x swissmade A.M.T. Heil® Tweeter.
Similar Products
- DMIX
DMIX – MTL315-10a
Product model: MTL315-10a
Product type： 15 "three-way line array active speaker
MHF init： 4 "coaxial mid high frequency unit
LF init： 15 "bass unit
Frequency response: 40Hz-18kHz
Rated power： LF: 600W， MHF: 150W
Sensitivity： LF: 102dB， MHF: 110dB
Maximum SPL： LF: 136dB(peak)， MHF: 142dB(peak)
Radiation angle： 100° ×10°，adjustable
Rated impedance： LF: 8Ω ， HF: 8Ω
Dimensions (W x H x D): 760×388×595 (W×H×D)
Module parameters
Module model: NX603LCD Dante module
Amplifier power: HF: 300W, LF: 1000W/8 Ω (Class D)
Input link: 2 balanced XLR inputs or 2 AES inputs, one set of Dante signal input and output
DSP control: RS485、USB、DANTE
- Speakers
- Dante Ch: 2x2
- 24-bit
- Danacoid
Danacoid – DA-RPOCL445
Dante 4 5” Column Speaker
Specifications
| Frequency Range | ±4 dB (90 Hz to 19 kHz) |
| Nominal Sensitivity | 96 dB |
| Nominal Coverage Angles (Horizontal×Vertical) | 110°×70° |
| Drivers | Woofer: 4×4 5”, Tweeter: 1×1 35” |
| Interface | |
| Ethernet Port | 1 Dante Audio (RJ-45) |
| Cascade Port | N/A |
| Power | |
| Power Consumption | 60 W, 8 ohms |
| PoE Standard | IEEE 802 3af (PoE), IEEE 802 3at (PoE+) |
| PoE Signaling | Powered Device (PD) |
| PoE Power | 85 W (peak power) |
| Enclosure | |
| Chassis Material | Metal |
| Chassis Color | Black |
| Chassis Dimensions (Hight×Width×Depth) | 750×180×160 mm |
| Environment | |
| Operating Temperature | +32 to +104 °F (0 to +40 °C) |
| Humidity | 10% to 90% RH (non-condensing) |
| Compliance | |
| Regulatory Compliance | FCC, CCC, CE, RoHS |
- Speakers
- Bose Professional
Bose – Panaray MSA12X
The Panaray MSA12X loudspeaker advances the Bose Professional line of modular arrays with a self-powered electronically-steerable loudspeaker offering consistent audio levels with outstanding vocal intelligibility and fullrange music reinforcement.
The Panaray MSA12X loudspeaker advances the Bose Professional line of modular arrays with a self-powered electronically-steerable loudspeaker offering consistent audio levels with outstanding vocal intelligibility and fullrange music reinforcement.
- Full-frequency range 75 – 14,000 Hz (-10 dB)
- Articulated Array® design produces wide, 160° horizontal coverage
- 12x full-range 2.25" transducers with onboard 600 W amplification
- Integrated DSP allows digital control and dual-beam steering per module
- Four beam algorithm modes: steer/spread, asymmetrical steer, and spiral
- Independent level and EQ control per-beam, with a ten-preset memory
- Integrated bracket system for up to 90° pivoting from wall
- Dante™ network audio and line-level analog input connectivity
- Slim, unobtrusive aluminum design in both white and black
- Design, setup, and control of beam coverage using Bose Modeler® and ControlSpace® software
- Speakers
- Dante Ch: 2x0
