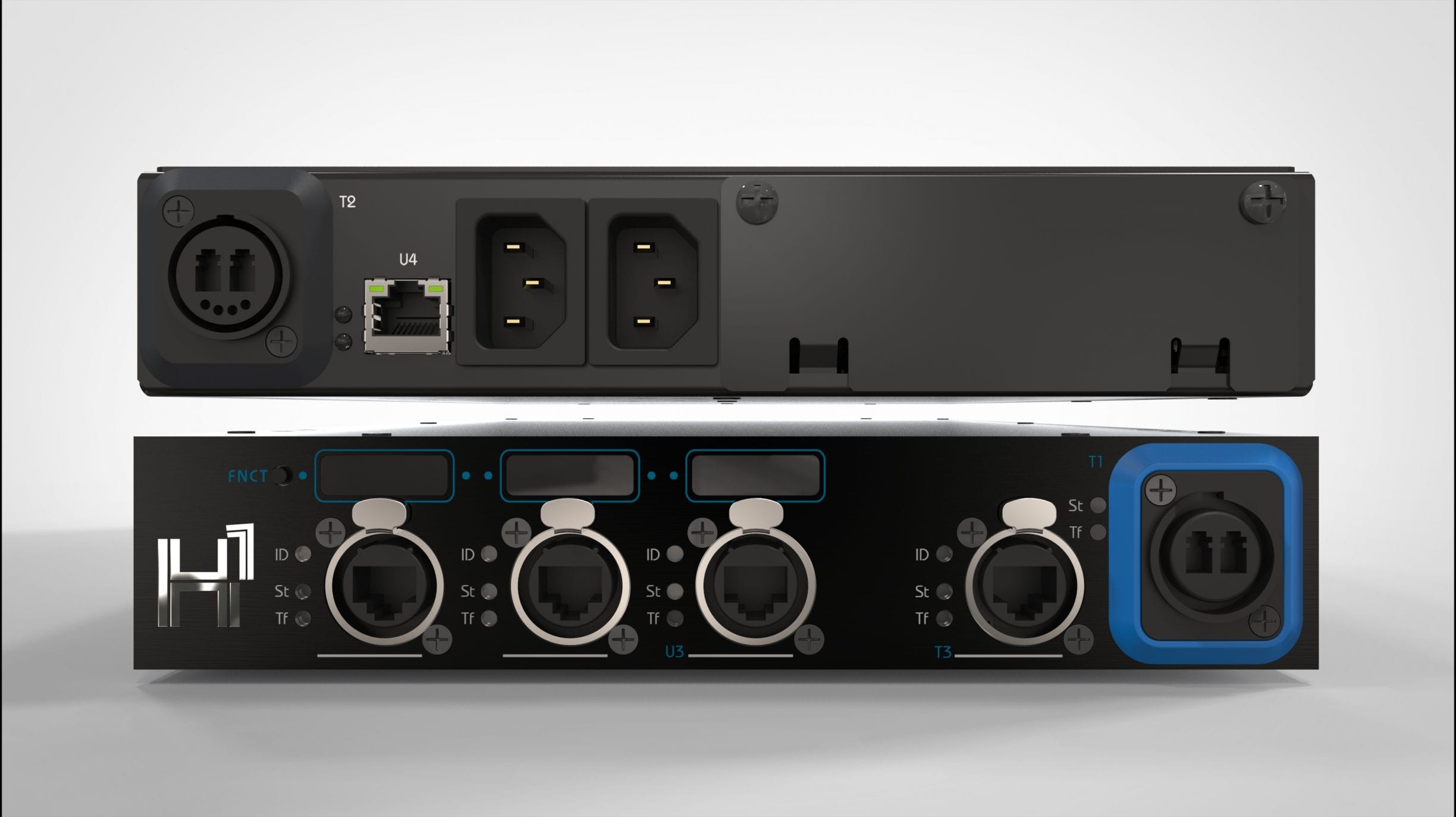

H1_Solo_FrontRear

Audio Routing Matrix Switches

Agora – H1 – Hybrid Audio Network bridge

H1 includes in a half-rack format:

1. A Dante™/AES67 Audinate Brooklyn II module
2. An audio matrix
3. A external slot to insert all AxC cards from Auvitran.
4. A manageable L2 Ethernet switch

H1 makes easy the bridging between Dante™/AES67 and various digital audio formats (AES3, MADI,…) , AVB-MILAN as well. With a Mic/Line analog card, H1 becomes an high quality noiseless compact stage box. The integrated low latency audio matrix connects independently the audio channels on both sides of the bridge. AVS monitor software allows to configure the audio core and the switch (Groups, Transmit ports, Q.O.S, link redundancy,…) in a unique workflow. Integrated into a global network, H1 provides a dual-service functionality as a managed network switch and an audio end-point .As a convergent and modular tool, H1 save rack space, expand the possibilities and improves the job for money ratio with an all-in-one design. In addition, lighting communication protocols (ArtNet, MANet, SaCN,…) are supported.
H1 is supplied with rack mounting parts. As options, you will find a wall-mounting kit and a truss-mounting kit.

Like all AGORA products, fiber optic and internal redundant power supply options are available.

More details
