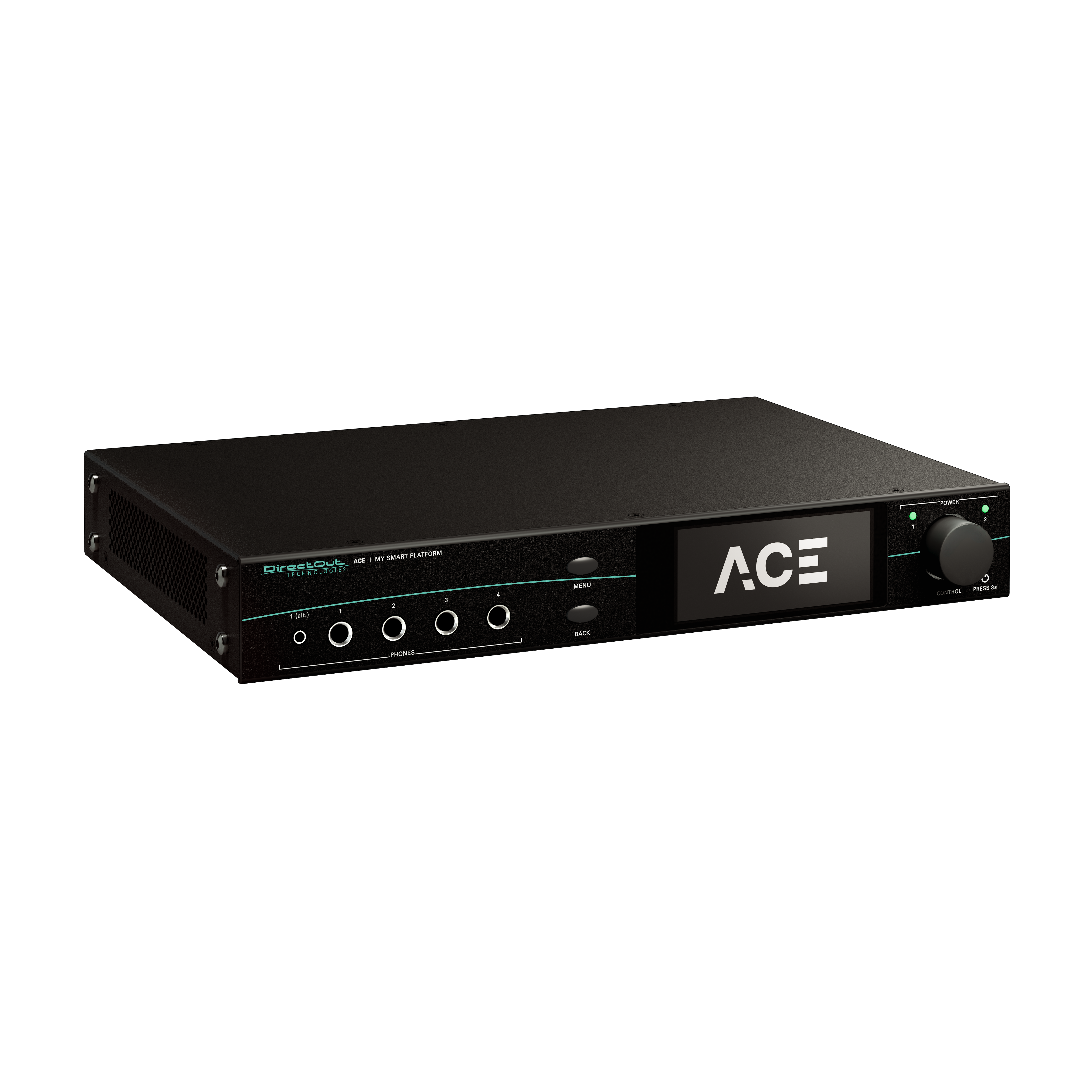

ACE

Digital Matrix Systems, DSPs (Digital Signal Processors), I/O Interfaces

More Details

Similar Products

TX-0812D
  • ZenWin

TX-0812D

Features
  • The panel is made of advanced materials, reflecting a grand and high-end atmosphere;
  •  The host is equipped with an OLED color screen, displaying the device's IP address and firmware version, and the input and output channels display electric frequency signals;
  • Built in USB sound card, can be connected to a computer to achieve audio signal transmission, supports recording and remote meetings;
  • Provide end user interface to achieve centralized control of multiple devices, which can be controlled by third-party devices through local UDP, RS232, RS485;
  • Each channel has independent adaptive feedback suppression, which automatically discovers feedback points and suppresses them. It also has processing modules such as AFC (feedback suppression), AEC echo cancellation, ANS (noise suppression), AGC (automatic gain), gain sharing threshold, and automatic mixing;
  • Having a 20 x 21 matrix; Full function matrix mixing, adjustable input mixing level;
  • 12 balanced audio outputs, using Phoenix plug interface 8. 8-way DANTE input,
  • 8-way DANTE output, using RJ45 network interface
  • Customize operating software to make configuration changes more flexible and control DSP of different specifications;
  • 8 GPIO can independently configure input and output, and can be used as an independent ADC when configuring input;
  • 16 sets of presets, each working independently;
  • Support channel shell, LINK, and grouping functions;
  • Fire linkage function;
  • Support R232&UDP central control, UDP port can be freely set, and control software code can be viewed;
  • The processor chip adopts ADI architecture, with a minimum of 40 bit DSP floating-point operation engine and free configuration software architecture provided;
  • Multiple control methods, which can be managed through web pages, mobile phones, tablets, key panels, touch panels, and other means
    Digital Matrix Systems
  • Dante Ch: 8x8
  • 48kHz
See the product
TX-1608D
  • ZenWin

TX-1608D

Features:
  • The panel is made of advanced materials, reflecting a grand and high-end atmosphere;
  • The host is equipped with an OLED color screen, displaying the device's IP address and firmware version, and the input and output channels display electric frequency signals;
  • Built in USB sound card, can be connected to a computer to achieve audio signal transmission, supports recording and remote meetings;
  • Provide end user interface to achieve centralized control of multiple devices, which can be controlled by third-party devices through local UDP, RS232, RS485;
  • Each channel has independent adaptive feedback suppression, which automatically discovers feedback points and suppresses them. It also has processing modules such as AFC (feedback suppression), AEC echo cancellation, ANS (noise suppression), AGC (automatic gain), gain sharing threshold, and automatic mixing;
  • Equipped with a 36x25 matrix, fully functional matrix mixing, and adjustable input mixing levels;
  • 16 balanced microphone/line input, 8 balanced audio output, using Phoenix plug interface;
  • 16 DANTE inputs, 16 DANTE outputs, using RJ45 network interface 9. Customize operating software to make configuration changes more flexible and control DSP of different specifications;
  • 8 GPIO can independently configure input and output, and can be used as an independent ADC when configuring input;
  • 16 sets of presets, each working independently; 12. Support channel shell, LINK, and grouping functions;
  • Fire linkage function;
  • Support R232&UDP central control, UDP port can be freely set, and control software code can be viewed;
  • The processor chip adopts ADI architecture, with a minimum of 40 bit DSP floating-point operation engine and free configuration software architecture provided;
  • Multiple control methods, which can be managed through web pages, mobile phones, tablets, key panels, touch panels, and other means
    Digital Matrix Systems
  • Dante Ch: 16x16
See the product

XTP II CP 4o HD AT 8K

The Extron XTP II CP HD 8K Output boards provide local connectivity for uncompressed 8K HDMI and separate digital or analog stereo audio. These XTP® I/O boards support HDMI 2.1 performance at video resolutions up to 8K/60 at data rates up to 40.1 Gbps. They comply with HDCP 2.3. Independent routing of embedded digital audio signals enables audio breakaway switching. For enhanced system design versatility, output boards provide analog stereo audio outputs. The XTP II CP HD 8K I/O matrix boards deliver a future-proof AV infrastructure that supports convenient growth and upgrade without needing to replace equipment. They are ideal for XTP Systems® that require flexible switching of uncompressed HDMI video and audio signals.
    Digital Matrix Systems
  • 24-bit
  • 48kHz
See the product
