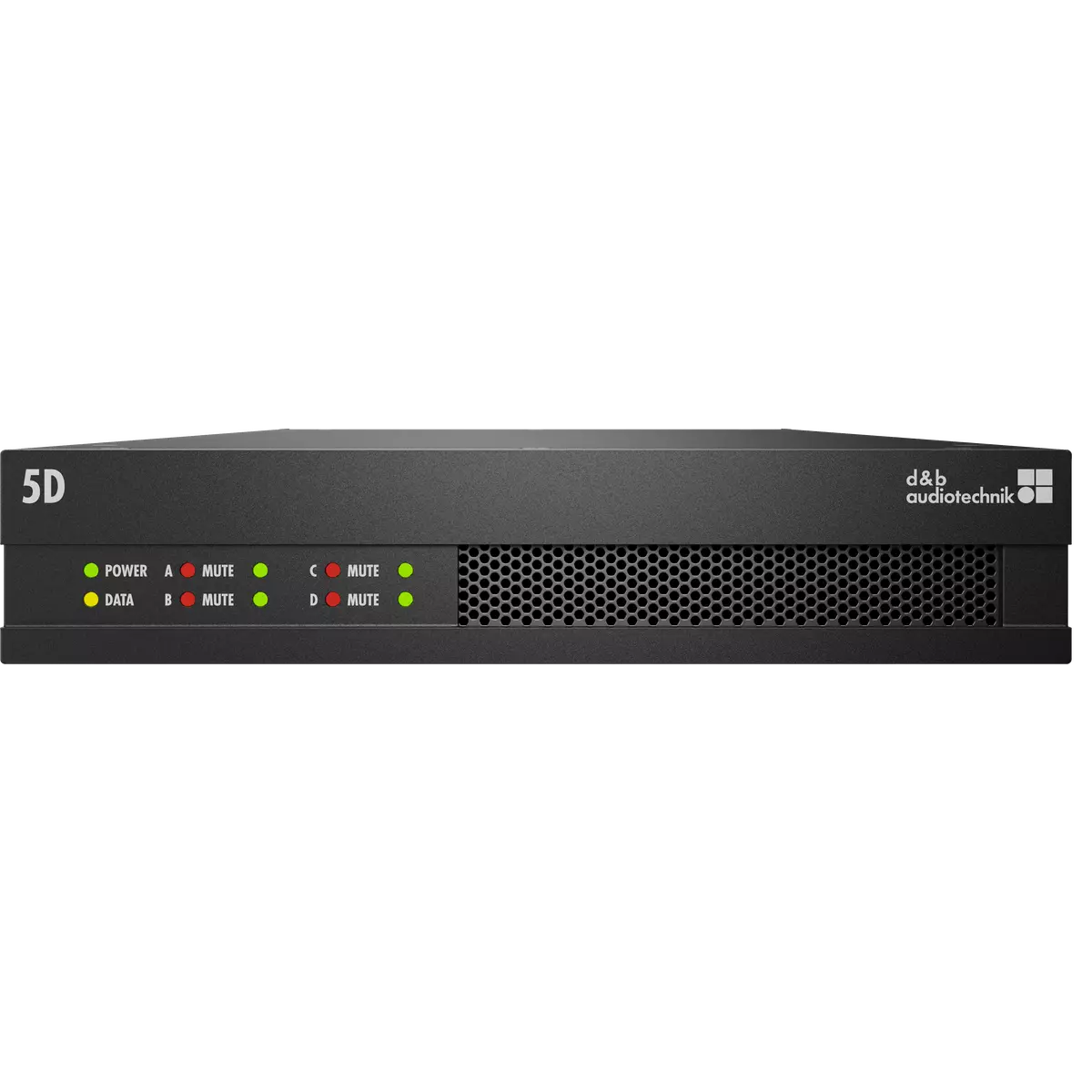

The 5D is a Class D installation amplifier with flexible power distribution among its four output channels. It uses Digital Signal Processing (DSP) to incorporate loudspeaker-specific configurations for smaller loudspeakers from E-Series, xS-Series, xC- and T-Series, as well as equalization and delay functions.
2 x 60 Watt Commercial Amplifier with Direct Drive Technology, Dante Networking, DDM Ready and Energy Star Certification. Delivering high-quality sound over both Low-Z (4/8 Ohm) and High-Z (70/100 V) loudspeaker configurations. Provides the perfect solution for commercial and industrial applications requiring great sounding distributed audio coupled with power conservation and reduced operating expense. FAD602 is easy to install and operate – even for non-technical personnel. Simply put, the FAD602 is ideal-suited for bars & restaurants, retail destinations, hotels, corporate, education or other venues needing background music and/or a public address system.
It also consumes less mains power than competing models, this amazing technology makes it possible to design and build powerful amplifier systems that not only save money on the electrical bill, but also reduce the requirements and cost at the installation for the mains supply. In fact, it is likely that installation can be done utilizing the in-place mains infrastructure. This adds up to significant installation and operational savings and protects the environment.
RAM Audio® introduces this new generation of professional touring amplifiers based on the field proven QuantaPulse™ Technology: V Series / W Series (with only aesthetic differences).
These new devices feature two or four channel models, ready for rough handling in the touring world. For this purpose, V/W Series amps implement oversized high efficiency regulated power supply with PFC front end to deliver their full performances independently of mains status.
This together with oversized high efficiency audio power stage, forced front to back cooling through a component-free path with removable front panel dust filters, improved rugged mechanical design with even weight distribution, full digital control from LCD display on the front panel… Resulting in: just power, reliability and robustness for your touring gigs!
V6000 Specifications:
| Power table | V6000 |
| 2 ohm | 2x3025W |
| 4 ohm | 2x1600W |
| 8 ohm | 2x820W |
| Bridge 4 ohm | 1x6050W |
| Bridge 8 ohm | 1x3200W |
| V6000 | |
| Frequency Response (power bandwidth ±0.25dB) | 20Hz – 20kHz |
| Phase Response (@1W 20Hz-20kHz) | ±15 deg |
| Total Harmonic Distortion (20Hz-20kHz) | <0.05% |
| Intermodulation Distortion (SMPTE) | <0.05% |
| Damping Factor (@8ohm) | >500 |
| Crosstalk (20Hz-1kHz) | >80dB |
| Voltage Gain | 26 dB to 38 dB (0.5 dB steps) |
| Sensitivity (rated power 26/32/38dB Gain) | 4.0/2.0/1.1V |
| Signal to noise Ratio (20Hz-20kHz) | 113dB |
| Required AC Mains | Operating Voltage (50Hz-60Hz) |
| Power On Idling (@230V) | 0.5A |
| 1/8 rated power (@230V min. Z) | 7A |
| Dimensions (WxHxD) | 483×88.9x460mm – 19×3.5×18.1inches |
| Weight (Net) | 10kg – 22.1lb |
