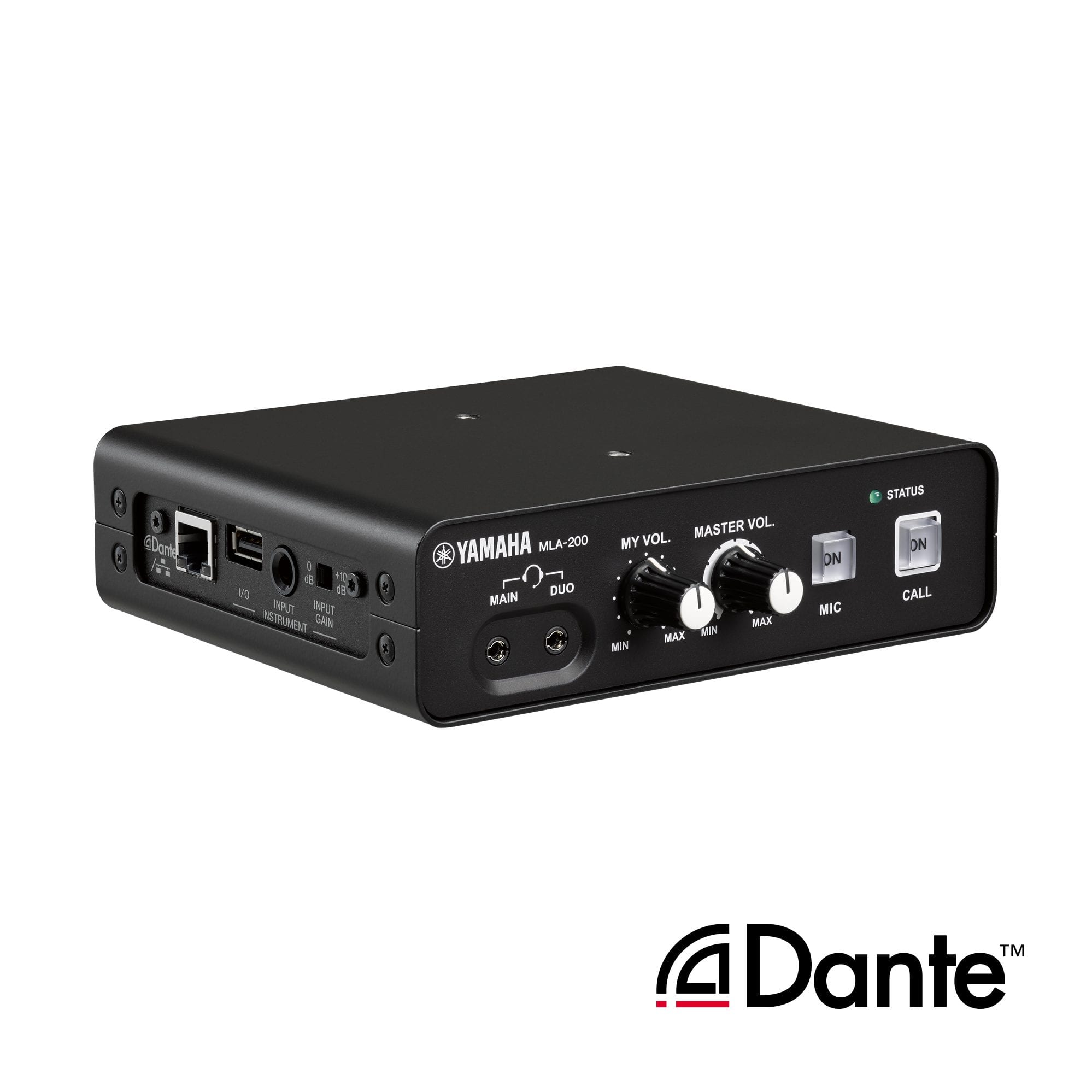

Yamaha – MLA-200

I/O Interfaces

More details

Similar Products

rts-rp-1000-series_1200px
  • RTS

RTS – KP 12 CLD Keypanel

The KP 12 CLD is the latest addition to the revolutionary CLD color keypanel series by RTS. The keypanel includes several cutting-edge features designed to enhance capability and ease of use. The instinctive graphic interface is housed inside two full-color 4.2” LCD displays. The front panel also features conveniences such as a user-programmable button, one-touch listen volume adjustment on each of the 14 new multifunction keys, and a backlit keypad. Like all RTS products, the KP 12 CLD is designed with expansion in mind. The front-mounted USB port and modular rear panel allow for future upgrades that will keep the KP 12 CLD on the forefront of technology for years to come. Features of the KP 12 CLD include:
  • Full color LCD displays - The new displays host a rich and intuitive graphic user interface that shows different keypanel functions with different colors and graphic icons.
  • Modern, modular design - The flat front panel is thoughtfully designed to fit easily into any control room or truck application. The back panel is optimized for future expansion.
  • Multi-directional keys - The keypanel features 14 multi-directional keys, 12 used for talk, listen, and emulation of traditional level control function.
  • Future expansion - The KP 12 CLD is designed to host for an expansion panel and optional connections to the matrix through current and future standard transmission formats.
  • Enhanced Features - The KP 12 CLD supports up to three auxiliary inputs, independent digital gain control for microphone sources, configurable audio routing and much more through an option board
  • DSP processing - Acoustic Echo Cancellation, Equalization, Mixing, Filtering, and Metering
  • USB - For future expansion and other planned interface features.
  • User programmable button - A user-programmable button (UPG-1) provides custom shortcuts to menu functions.
  • GPI expansion unit available - The GPI expansion unit provides additional connectors for Relay, Headset, Footswitch/Speaker, Mic In/Out, Auxiliary, and other functions.
    I/O Interfaces
See the product
audix-DN4
  • Audix

Audix – DN4

The DN4 microphone interface is a key part of the Audix Dante | AES67 Integrated Microphone System, the fast, trouble-free way to stream Audix audio performance through Ethernet networks. High-quality audio and all microphone functions - including on-off contact closure and LED status indicators - are available through a single CAT5 - CAT7 cable with RJ45 connections at both interface and microphone. This simple configuration eliminates wiring errors, accelerates installation, and reduces cost.

The DN4 features four inputs for Audix RJ45-equipped, single-element microphones and two 5V logic outputs per port, with source/sink capability for LEDs that are controlled by network-connected DSPs and one logic input per port for buttons. Low-pass and high-pass filter settings are available on each audio channel, as are eight selectable gain levels, with all settings configurable via software.

Audio Features

  • Compatible with all Audix RJ45-equipped, single-element, analog microphones
  • High-fidelity 24-bit, 48kHz audio
  • Balanced audio inputs with RFI filtering
  • 48V phantom power output
  • Each channel has eight selectable pre-amp gain levels, as well as low- and high-pass filters
  • All channels controlled independently
  • Flash memory prevents loss of settings in the event of power loss

Dante® Features

  • Supports AES67 audio streams
  • Dante Domain Manager (DDM) ready
  • Dynamic or static IP address
  • Evaluated to the requirement of UL2043 and is suitable for use in above-ceiling applications

Power Features

  • Operates on PoE from any IEEE 802.3af compliant equipment
    I/O Interfaces
See the product
rdl-dds-bn31_1200px|rdl-dds-bn31_1200px
  • RDL

RDL – DDS-BN31

The DD-BN31 is a complete wall-mounted Dante audio network interface. It features two XLR mic or line inputs, one stereo Mini-jack line input and one stereo Mini-jack line output on the front panels, plus two line outputs on a rear-panel detachable terminal block.  The DD-BN31 is a complete wall-mounted Dante audio network interface. It features two XLR mic or line inputs, one stereo Mini-jack line input and one stereo Mini-jack line output on the front panels, plus two line outputs on a rear-panel detachable terminal block. Special software is not required to configure the DD-BN31. Each XLR input provides three switches that may be set from the front of the unit when the cover plate is not installed. One switch enables or disables P48 phantom for that input; the second switch selects the mic or line gain range; the third switch sets the gain. The Mini-jack input provides a switch to configure the input for stereo or summed mono. The Mini-jack output provides a switch to configure the output for stereo or left-channel mono. Each rear-panel output provides a switch to set the output to balanced professional or unbalanced consumer level. The DD-BN31 fits a standard US dual-gang electrical box or an RDL WB-2 back box for installations in thinner European or equivalent walls. The DD-BN31 is PoE powered, and is available in multiple finishes with optional customized graphics. The two XLR inputs are each converted to a separate Dante network transmit channel. Three gain settings are switch-selectable for both the mic and line input ranges to match condenser or dynamic mic levels and standard line levels. The Mini-jack left and right inputs are each converted to a separate Dante network transmit channel. Each input provides a network digital audio level of -18 dBFS for an unbalanced -10 dBV input. The input is equipped with a selector to sum the left and right Mini-jack inputs. The summed signal feeds both Dante transmit channels. Two Dante audio channels are converted to unbalanced line level to feed the front-panel Mini-jack. Each channel provides -10 dBV unbalanced for a network digital audio level of -18 dBFS. The left and right Mini-jack channels are normally fed from Dante receive channels 3 and 4 (stereo). The Mini-jack output is equipped with a selector to feed both output channels from Dante receive channel 3 (mono). This selector may be set from the front of the unit when the cover plate is not installed. Two Dante audio channels are converted to balanced line level on the rear-panel detachable terminal block. Each output provides +4 dBu balanced for a network digital audio level of -18 dBFS. Each output is equipped with a selector to unbalance the audio and attenuate the level to -10 dBV. These switches are located on the top of the chassis and are set by the installer prior to mounting the unit. The rear-panel outputs are intended for connection to RDL AMS connectors mounted in Decora-style plates that match the DD-BN31. AMS audio connectors include RCA, Mini and XLR jacks. The output plate may be located together with the DD-BN31 in a triple gang box or may be mounted remotely in a single box. Valid PoE power and synchronization to the Dante network are indicated by green LEDs visible from the front of the unit. The DD-BN31 is a professional grade product with discrete mic preamplifiers for studio quality fidelity and low noise performance, coupled through metal XLR jacks housed in a stainless steel chassis with dual powder-coated or stainless steel Decora front plates. The DD-BN31’s superior performance specifications make it ideally suited to the most demanding installations, and an exceptional value in commercial networked audio systems. This full-featured product is engineered and manufactured in the U.S.A for continuous duty in demanding installations. Designed to outperform. Built to last.
    I/O Interfaces
See the product
