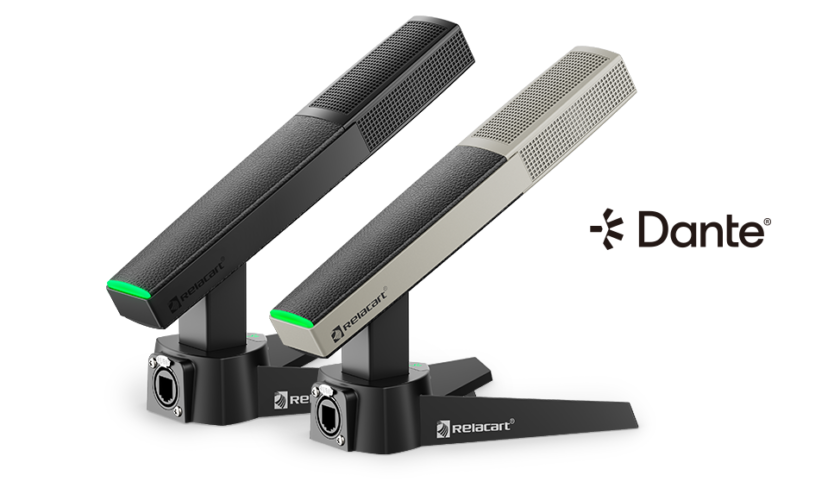

TDN2

Microphones

Similar Products

  • BARE

BARE – DCS-201C/D

1. Exquisite and elegant design, ergonomic, very modern. 2. Original D-net IOT digital conference IoT system technology, in line with IEC60914 international standard 3. With priority button function, you can turn off the representative unit that is speaking. 4. The microphone is equipped with an ultra-quiet electronic touch switch, which can avoid the mechanical sound amplification of the switch, and can control the operation of the microphone pickup. The microphone has a bright luminous halo to indicate the working status. 5. The unique audio processing circuit improves the clarity of the entire system. 7. The chairman unit can use the priority button (Priority) and the approval button (Permit) to control the speaking sequence and control the meeting atmosphere. 8. The unit comes with a 2m Category 6 RJ45 network cable; 10. Independently adjust the microphone gain, which can be adjusted on the microphone or computer management software, so that speakers with different volumes can speak more smoothly; 9.1 Ø 3.5 mm stereo headphone jacks can be connected to headphones. 10. The unique ID number of the microphone unit, the conference system can manually assign the conference unit.
    Microphones
See the product
  • Catchbox

Catchbox Plus

The Hub is the microphone receiver at the heart of the Plus system. Manage your mics through the intuitive graphical UI, connect and monitor your systems via API or utilize built-in Dante™ audio over IP functionality.

    Microphones
See the product
201991817125
  • BARE

BARE – Microphone System

Features
1. Advanced modular design, four groups of receiving modules, each group has a built-in independent CPU processing system to complete audio processing and transmission.
2. Ultra-high-bandwidth UHF 600MHZ-700MHZ, suitable for occasions that require a large number of microphones, making it easy to form a wireless conference microphone system.
3. Superb reception, overcome long distance and complicated field environments.
4. Use Ethernet cable to connect directly to the network-no need to add and solder audio cables.
5. Can control Dante routing and settings through a computer
6. The entire scalable Dante system has 512 two-way audio channels
7. Both the network volume and the receiver volume can be adjusted separately.
Technical parameters:
IF frequency: first IF: 110MHz, second IF 10.7MHz
wireless interface: BNC / 50 ohm
sensitivity: 12 dB (80dBS / N )
Sensitivity adjustment range: 12-32 dB
spurious suppression: ≥75dB
Maximum output intensity: +10 dBV
Frequency range: 600-700MHz
Modulation mode: FM
adjustable range: 50MHz
Number of channels: 100 or 200)
Channel interval: 250 KHz
frequency stability: within ± 0.005%
dynamic range: 100dB
maximum frequency deviation: ± 45KHz
audio response: 80Hz-18KHz (3dB)
comprehensive signal-to-noise ratio:> 105dB
Comprehensive distortion: ≤0.5%
Working temperature: -10 ℃ ~ + 40 ℃

    Microphones
