Stageboxes

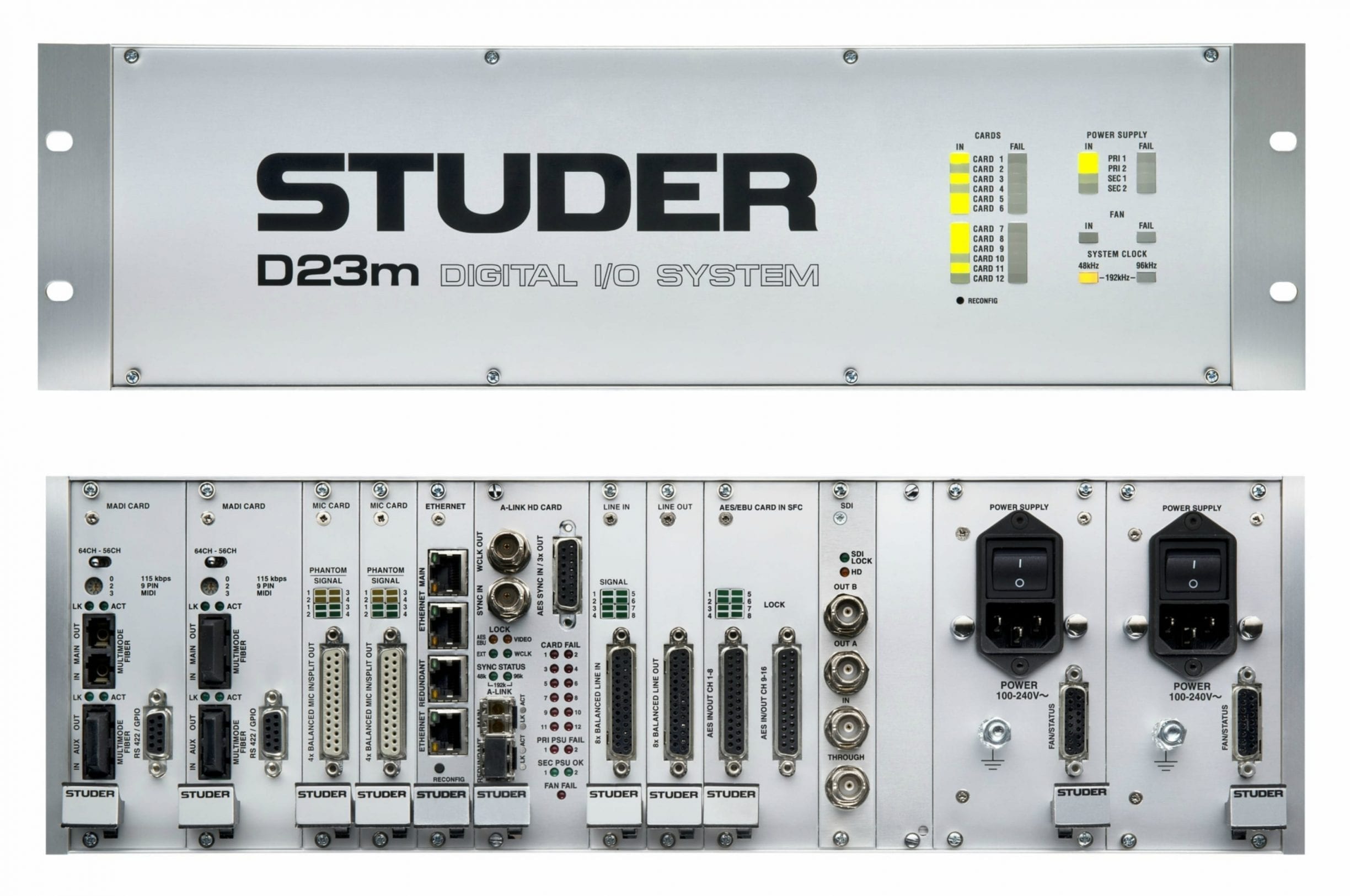

Studer – D23m Digital I/O System
Studer’s D23m Digital I/O System was developed for the Infinity Series large scale mixing consoles, but it also operates with SCore Live Vista mixing systems. D23m serves as a scalable, modular I/O frame providing cost-effective inputs and outputs with maximum flexibility while maintaining the well-known Studer sound quality.
Studer’s D23m Digital I/O System was developed for the Infinity Series large scale mixing consoles, but it also operates with SCore Live Vista mixing systems. D23m serves as a scalable, modular I/O frame providing cost-effective inputs and outputs with maximum flexibility while maintaining the well-known Studer sound quality.
D23m can host up to 12 I/O cards with a total of 1,536 inputs and 1,536 outputs (dependant on the I/O cards
fitted). When used as a small stand alone router, the D23m frame provides a huge I/O Matrix of 3,072 x 3,072 inputs and outputs. The new D23m I/O system comes with two A-Link ports and two hot swappable power supplies for secure, redundant operation.
