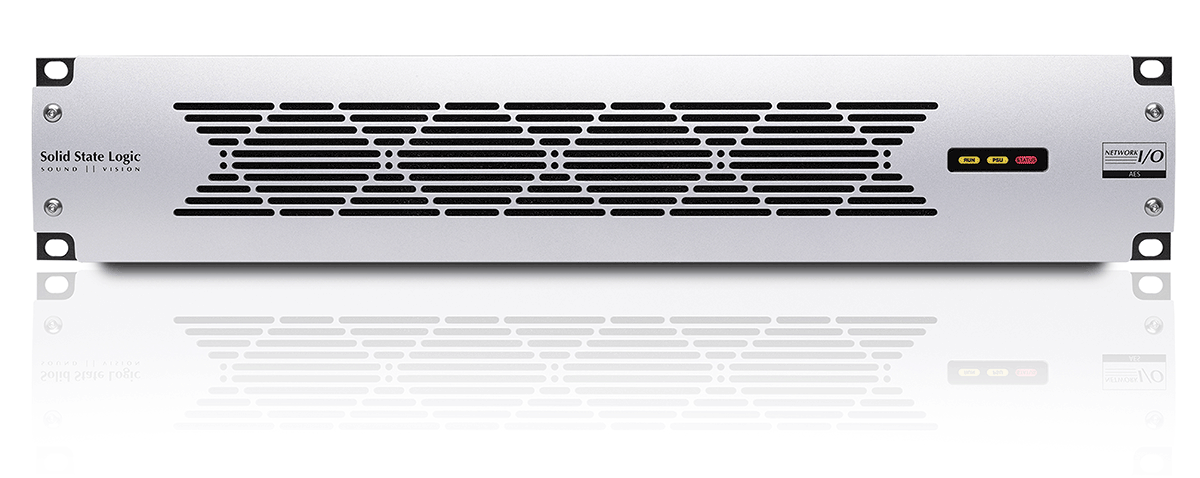

SSL – Network I/O AES

I/O Interfaces

More details

Similar Products

rdl-dd-bn2ml_1200px
  • RDL

RDL – DD-BN2ML

front panels, plus two line outputs on a rear-panel detachable terminal block. Special software is not required to configure the DD-BN2ML.  front panels, plus two line outputs on a rear-panel detachable terminal block. Special software is not required to configure the DD-BN2ML. The XLR input provides three switches that may be set from the front of the unit when the cover plate is not installed. One switch enables or disables P48 phantom; the second switch selects the mic or line gain range; the third switch sets the gain. The Mini-jack input accepts mono or stereo unbalanced line-level sources that are summed to mono. Each rear-panel output provides a switch to set the output to balanced professional or unbalanced consumer level. The DD-BN2ML fits a standard US dual-gang electrical box or an RDL WB-2 back box for installations in thinner European or equivalent walls. The DD-BN2ML is PoE powered, and is available in multiple finishes with optional customized graphics. The XLR input is converted to feed one Dante network transmit channel. Three gain settings are switch-selectable for both the mic and line input ranges to match condenser or dynamic mic levels and standard line levels. The Mini-jack left and right inputs are summed to mono to feed one Dante network transmit channel. This input provides a network digital audio level of -18 dBFS for an unbalanced -10 dBV input. Two Dante audio channels are converted to balanced line level on the rear-panel detachable terminal block. Each output provides +4 dBu balanced for a network digital audio level of -18 dBFS. Each output is equipped with a selector to unbalance the audio and attenuate the level to -10 dBV. These switches are located on the top of the chassis and are set by the installer prior to mounting the unit. The rear-panel outputs are intended for connection to RDL AMS connectors mounted in Decora-style plates that match the DD-BN2ML. AMS audio connectors include RCA, Mini and XLR jacks. The output plate may be located together with the DD-BN2ML in a triple gang box or may be mounted remotely in a single box. Valid PoE power and synchronization to the Dante network are indicated by green LEDs visible from the front of the unit. The DD-BN2ML is a professional grade product with a discrete mic preamplifier for studio quality fidelity and low noise performance, coupled through a metal XLR jack housed in a stainless steel chassis with dual powder-coated or stainless steel Decora front plates. The DD-BN2ML’s superior performance specifications make it ideally suited to the most demanding installations, and an exceptional value in commercial networked audio systems. This full-featured product is engineered and manufactured in the U.S.A for continuous duty in demanding installations. Designed to outperform. Built to last.
    I/O Interfaces
See the product
ru-nl4_400px|ru-nl4_400px
  • RDL

RDL – RU-NL4

The RU-NL4 is a high quality Dante network to line level interface. The RU-NL4 converts four Dante network audio channels to +4 dBu balanced line level that corresponds to a network digital audio level of -18 dBFS. LED audio signal indicators are provided. Model RU- NL4P operates from PoE. The RU-NL4 is a high quality Dante network to line level interface. The RU-NL4 converts four Dante network audio channels to +4 dBu balanced professional line level. The front panel features signal LEDs that indicate audio presence for each of the received network signal channels. Balanced +4 dBu audio levels correspond to a network digital audio level of -18 dBFS. The noise floor is better than 80 dB below operating level. Crosstalk is below the noise floor between all outputs across the entire audio spectrum. The RU-NL4 is also available in a PoE version (RU-NL4P). If PoE power and an external 24 Vdc supply are both feeding an RU-NL4P, the unit will run from the external supply and will seamlessly switch over to PoE power upon loss of the external supply.
    I/O Interfaces
See the product
micromedia-Digimedia-AMP-Pro_1200px|micromedia-Digimedia-AMP-Pro_1200px
  • Micromedia

Micromedia – Digimedia AMP Pro

Digimedia AMP Pro is a 2 channel Dante™ interface with analog amplifier output and PoE (Power over Ethernet) on board. There is Dante Domain Manager and AES67 support build in. Audio output power depends on PoE and can go up to 20W. Digimedia AMP Pro is a 2 channel Dante™ interface with analog amplifier output and PoE (Power over Ethernet) on board. There is Dante Domain Manager and AES67 support build in. Audio output power depends on PoE and can go up to 20W.
    I/O Interfaces
See the product
