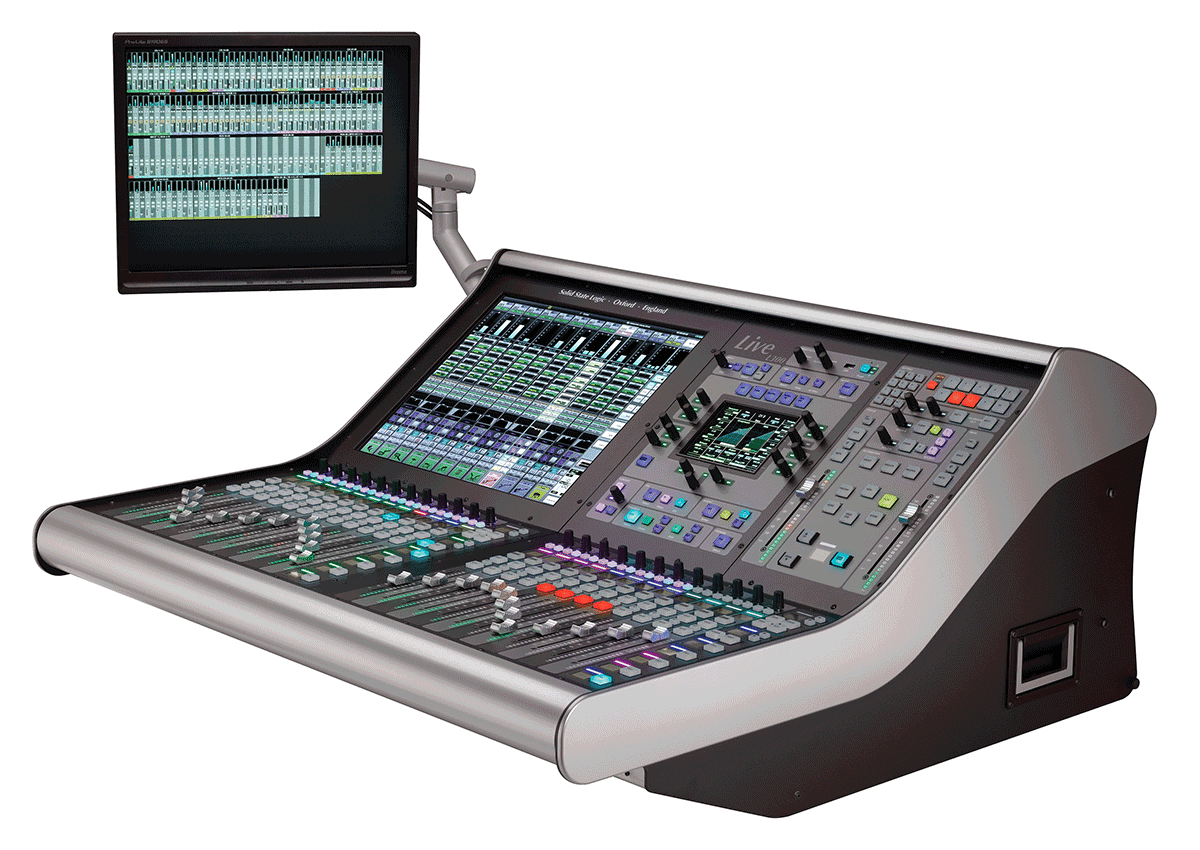

SSL – L300

Mixers

More details

Similar Products

rx2_24fader-800x254
  • DHD audio

DHD Audio – RX2

Developed for the highest demands in radio and TV broadcast environments, the RX2 is perfect for modern workflows in on-air studios, main control rooms and OB vans.

    Mixers
  • Dante Ch: 64x64
  • AES67 Enabled
See the product
  • RDL

RU-NMP44

The RU-NMP44 is a network mixing processor containing six virtual audio mixers controlled by network commands from RDL and other network remote controls. Each mixer operates independently with input signal attenuation from unity to off. The output level from each mixer is independently adjustable from unity to off. Based on the commands sent to the RU-NMP44, each mixer can be used as a mixer, a source selector, a priority paging inserter and/or as a volume control. The outputs from four of the mixers drive corresponding network audio channels. The outputs from two of the mixers drive line-level +4 dBu audio outputs. The RU-NMP44 is configured using RDL CONSOLE or other network control software. If ducking is used, one of the four network audio inputs is assigned as the priority input. That input is connected to all six virtual mixers. An audio detector with installer-defined threshold and recovery delay may be assigned to one, several, or all of the six mixers. For each of those mixers, the priority input is set to a defined level, and the remaining three inputs are each set to attenuate to a fixed level between -10 and -64 dB when a message is detected on the priority input. If hum is anticipated from the paging source, one of four high-pass filter may be enabled. Up to four preset configurations may be stored in the RU-NMP44. Each preset can define any or all mixer level settings. A preset is activated by a network command, an RDL network or wired remote control, a momentary switch closure or a compatible open-collector from other equipment. The RU-NMP44 may be configured to power up to a preset, to the last settings used, or with all levels “off”. The RU-NMP44 may be powered from an external 24 Vdc power supply, available separately. The RU-NMP44 is equipped to operate from a PoE enabled network switch. The RU-NMP44 will reserve power from the switch even while being powered from an external 24 Vdc supply. If PoE power and an external 24 Vdc supply are both feeding an RU-NMP44, the unit will run from the external supply and will seamlessly switch over to PoE power upon loss of the external supply. The RU-NMP44 is ideal for adding volume control, mixing, switching and ducking to existing network audio systems. The digital signal processing offered in the RU-NMP44 often fulfills all the requirements for an audio system design, such as in classrooms, meeting rooms, restaurants/bars, fitness gyms and retail stores. The RU-NMP44’s superior performance specifications make it ideally suited to the most demanding installations, and an exceptional value in commercial networked audio systems. The RU-NMP44 is constructed in a durable, professional all-metal enclosure suitable for free-standing, surface-mounted or rack-mounted operation. This full-featured product is engineered and manufactured in the U.S.A for continuous duty in demanding installations. Built to last. Built to outperform.
    Mixers
  • Dante Ch: 4x4
  • 24-bit
See the product
  • Yamaha

DM3

the DM3—the first compact console to be fully compatible with Dante technology, allowing for faster and easier setup with multiple devices. Both consoles feature a multi-language user interface that can be configured to make operation simple and trouble-free for users with different backgrounds and varying skill levels. Equally at home in a live performance venue or your home studio, it’s easy to imagine taking a DM3 Series console to a gig, recording and streaming the audio, and then taking it home for editing as part of your DAW setup. Alternatively, you could use it as a main mixer for a small performance one day, and as a sub-mixer for live streaming the next—the possibilities are endless. FEATURES
  • Packs 22 channels into an ultra-compact digital mixer: 16 mono channels, 1 stereo channel, and 2 stereo FX returns\
  • 9-inch touchscreen and single all-purpose touch-and-turn knob provide easy operation and navigation
  • Capable of sampling rates as high as 96kHz
  • 6 mono or 3 stereo mixes, 2 matrixes, and 1 stereo bus
  • 16 outstanding mic preamps and 8 convenient analog outputs\
  • Excellent built-in DSP effects
  • 16 x 16 Dante interface supplies loads of room for expansion\
  • 18 x 18 USB audio interface for playback and recording
  • 2 x 2 recording directly to a USB drive
  • DAW remote mode with transport control
  • Custom control via OSC, USB-MIDI, and Yamaha's powerful ProVisionaire software applications
    Mixers
  • Dante Ch: 16x16
  • 24-bit, 32-bit
See the product
