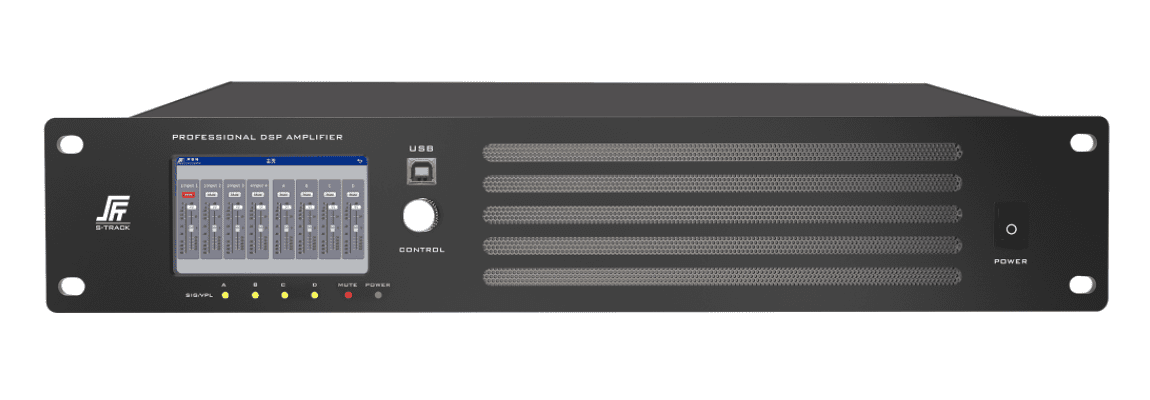

The 4-channel DSP digital power amplifier is composed of a 3.97-inch color TFT resistive touch screen module and an audio processing module. There are 4 analog audio balanced signal input terminals, which are converted into 4 balanced outputs, and a series of software digital processing is carried out in the middle. .
The VMO16 brings all the benefits and experience of our live sound filters and dynamics algorithms to an installation product.
The 16 inputs from the Dante network go to a full 16x16 matrix mixer allowing any Dante networked inputs to be routed to any analogue output channel. All of the 16 analogue outputs have 16 bands of parametric EQ, 48dB/ Oct high and low pass filters, up to 1.3 seconds of delay as well as our high performance, two-stage PXL limiters for high performance loudspeaker protection.
All analogue audio connections are on Phoenix-type 3-pin 5.08mm pitch connectors. The 4 GPI connections allow configurable actions such as fire alarm mutes and preset recalls. Up to 30 presets can be stored with recall options allowing selective recall combinations of input, matrix and output sections.
Our D-Net control software for PC, Mac and iPad gives you complete control over ethernet amd wifi. The VMO16 is also fully compatible with our VR1 PoE remote control panel for simple, flexible user control. Control via third party systems such as Crestron™ is available via our simple ethernet control protocol.
DAP0408F (D4) is the abbreviation of digital audio processing. It is a professional speaker processor that can realize a variety of DSP functions. This series of products integrates compressors, limiters, frequency dividers, delays, equalizers, mixing The matrix can be quickly debugged and monitored through the exquisite and intuitive Mconsole software, which provides a broad operating space for the construction and operation of professional audio amplification systems. D4 indicates the function of configuring 4-way Dante network audio input and output interface.
