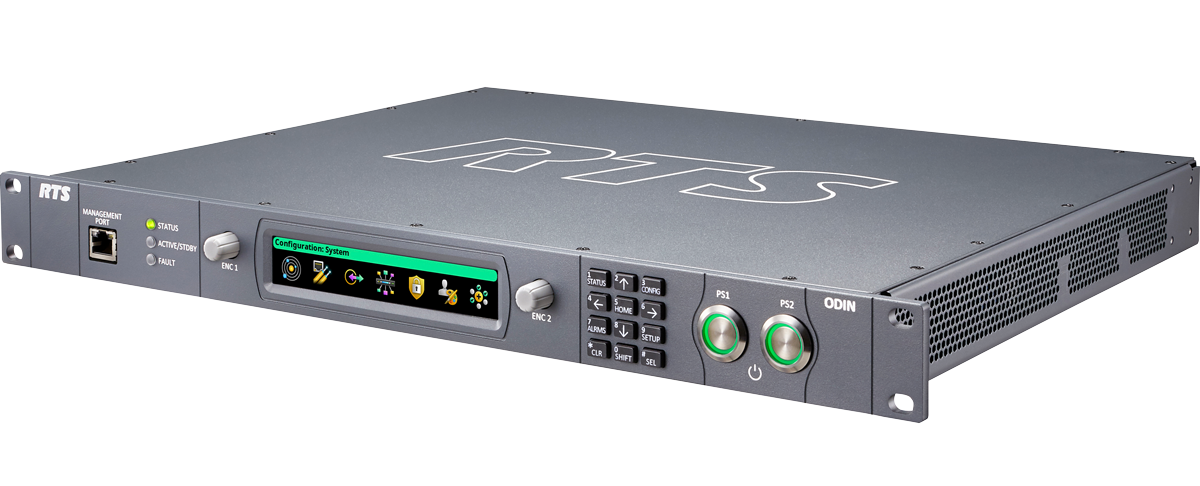

RTS – ODIN


More details

Similar Products

Beatrice_P2_angle_BAN
  • Glensound

Glensound – Beatrice P2

The Beatrice P2 is a phone handset for Dante® network intercom. The user of the handset on the P2 unit can listen to two audio feeds from the network and send two audio channels out onto the network. Depending upon how the Dante® network has been routed the incoming audio circuits and outgoing circuits can be different locations and the outgoing circuits can be routed to multiple locations. Audio to the handset from the two network sources is routed to the telephone's earpiece only when the handset is off the hook. when the handset is picked up (off hook), the handset's microphone is turned on and two switches allow the operate to route the handset's microphone to one or other (or both) of the outgoing network audio channels.
    Intercoms
  • Dante Ch: 2x2
  • 24-bit
glensound-beatrice_1200px|glensound-beatrice_1200px
  • Glensound

Glensound – Beatrice Mix32

The Glensound BEATRICE MIX32 is a high density audio mixer for producing fixed ratio audio mixes from/ to Dante and AES67 audio networks.  The Glensound BEATRICE MIX32 is a high density audio mixer for producing fixed ratio audio mixes from/ to Dante and AES67 audio networks. It can be fitted with a maximum of 4 independent mixer cards, each with their own redundant network interface. Each of these mixer cards provides 32 audio inputs and 32 audio outputs from the network, with the 32 outputs being mixes derived from different sets of input channels. Audio limiter/ compressor circuits are also provided for each input/ output. These can be turned on/ off globally as required via a simple front panel rotary encoder. The fixed ratio mixes in the Beatrice MIX32 were originally designed to allow network audio intercom systems to generate multiple listening circuits, however the high quality low noise, digital mixers can be also be used for many other applications. Being designed for 24/7 broadcast operation, the Beatrice MIX32 features both redundant power suplies and also redundant network interfaces.
    Intercoms
  • Dante Ch: 32x32
  • 24-bit
riedel-Artist-32-Matrix|riedel-Artist-32-Matrix
  • Riedel

Riedel – ARTIST 32

IBC 2016 technology showcase product The Advanced Communications Platform Artist is a highly modular concept driving modern intercom demands. It is designed as a powerful matrix platform for intercom and the distribution of analog audio, digital audio, and Ethernet data signals. IBC 2016 technology showcase product The Advanced Communications Platform Artist is a highly modular concept driving modern intercom demands. It is designed as a powerful matrix platform for intercom and the distribution of analog audio, digital audio, and Ethernet data signals. The system consists of a fiber-based network backbone providing a decentralized infrastructure for live audio and intercom applications. Artist is a digital matrix intercom system providing up to 1,024 x 1,024 non-blocking ports per system. The system is based on a dual optical fiber ring to form a single large, full summing, nonblocking distributed matrix. The system still “feels” like a single unit: it is completely non-blocking and has no limitations in the number of cross-points within or between the different nodes of the system.
  • Maximum matrix size: 1024 x 1024
  • Hot swap of all modules
  • Redundant power supplies
  • Redundant node controller
  • Max. ports per frame: 32
  • Max. number of controller / client / GPI cards per frame: 2 / 4 / 1*
  • 19" / 2 RU
 * Typical installation with one Controller Card slot or one Client Card slot used for a GPI Card.
    Intercoms
  • AES67 Enabled
