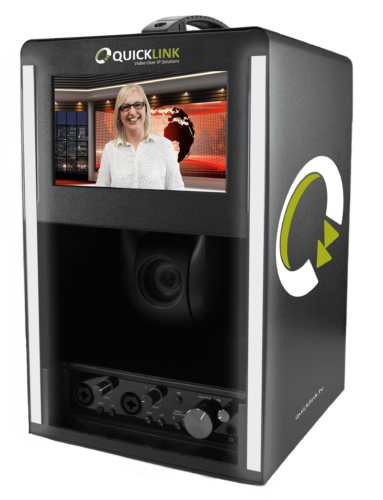

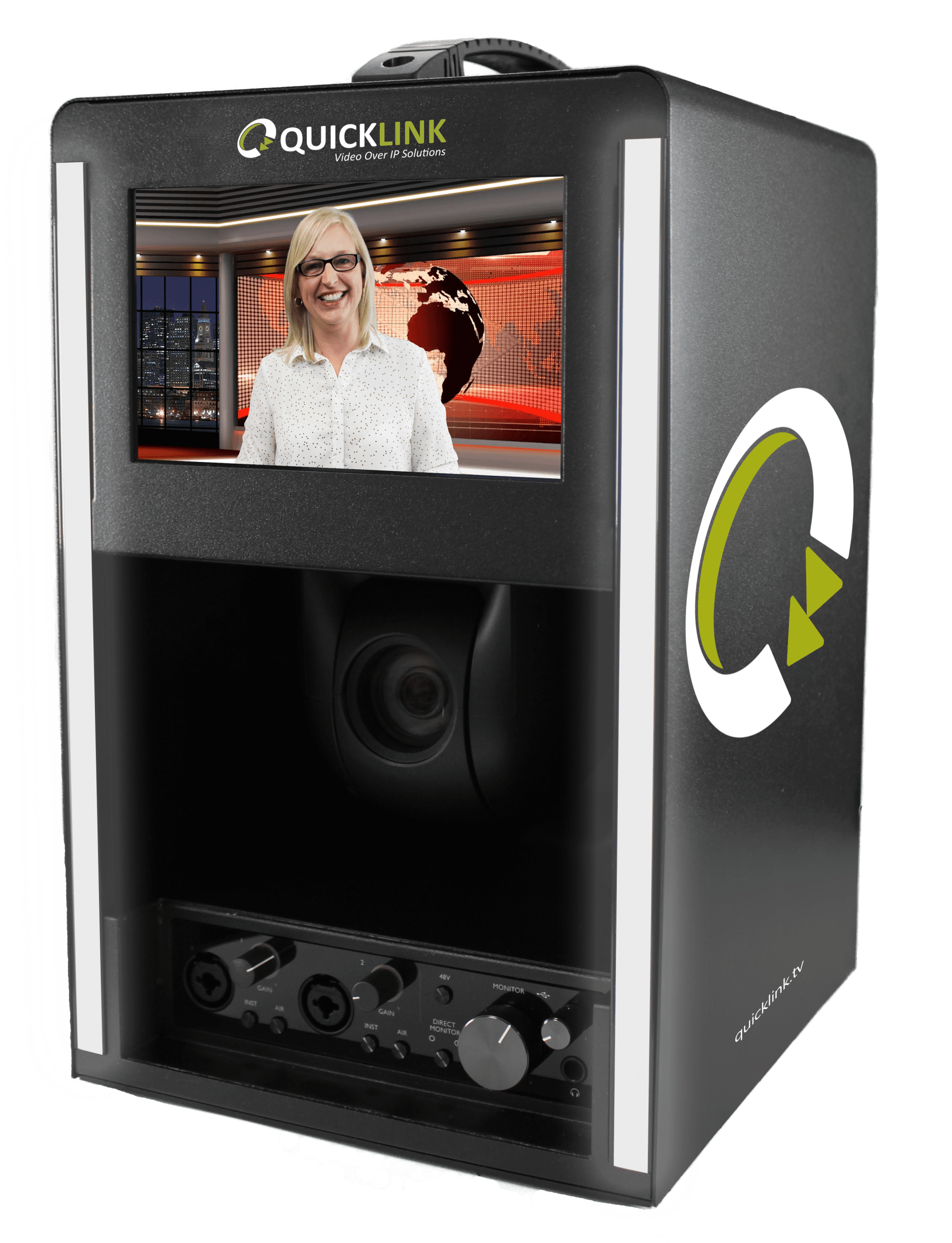

Quicklink – ST500

I/O Interfaces

More details

Similar Products

yamaha-swr2100p_10g_1200px|yamaha-swr2100p_10g_1200px
  • Yamaha

Yamaha – SWR2100P-10G

Complex network switch setup that was previously better left to an IT technician can now be easily accomplished by anyone. A simple switch setting is all it takes to optimize SWP1 series network switches for Dante operation, and a dedicated Windows application provides “network visibility” for comprehensive monitoring and control. Yamaha has used its knowledge of both IT and pro audio to provide "SWR2100P series" simple L2 switch that has been optimized for networked audio installations. The switch can take advantage of "Yamaha LAN Monitor" a dedicated Windows application that provides 'network visibility' for comprehensive monitoring and control. The "SWR2100P series” which are simple L2 switches can supply power as well as audio and control signals to a PoE-compliant Dante device such as the paging station microphone “PGM1” through just one Ethernet cable. Since the power supply and the network wiring can be combined, the number of cables being used can be reduced, and the connection distance can be extended, so the degree of freedom of Dante device installation is increased and construction flexibility is further improved. Systems built around the SWR2100P-5G or SWR2100P-10G L2 switches allow comprehensive network monitoring from the dedicated Yamaha LAN Monitor software application, with PoE power status monitoring and ON/OFF switching capability. Understanding how multiple switches installed in different locations are connected, plus how network devices are connected to those switches, can be a difficult, time-consuming task. The Yamaha LAN Monitor makes overall network topology clearly visible, giving the user a comprehensive overview of how multiple switches and Dante network devices are interconnected. Simply connect a Windows PC to the nearest SWR2100P series switch and launch the Yamaha LAN Monitor software. You can take a “snapshot” of the network status when set up as required. The software can then automatically keep track of the settings and alert you to any changes. You could take a snapshot of the network, and then you would be alerted if a cable is disconnected, if a device is turned off, or if a wrong connection is made prior to the performance, for example. Identifying devices connected to a switch by only their IP or MAC address is a difficult and error-prone approach. Connected Dante devices are identified by a Dante icon as well as a device ID previously set up via the Dante Controller software. You can also enter additional info, such as the location of the device, in the Label and Comment fields. If the monitoring device does not respond to a Ping, it judges that a fault has occurred and automatically stops the PoE power supply to that device and then resumes it. This restarts the monitoring equipment and attempts recovery. By collectively managing the status of the devices distributed over a wide area, it can ensure that equipment management can operate far more smoothly.
    I/O Interfaces
See the product
DNTWP-Front|DNTWP-Front
  • Lectrosonics

Lectrosonics – DNTWP

The DNTWP Dante™ Audio Interface is a cost effective multi IO wall box. The unDX2IO features two balanced mic/line XLR inputs and two balanced XLR line outputs. All inputs and outputs can be used simultaneously and all audio channels are available separately. The unDX2IO is designed to fit into most dual gang US junction boxes and is PoE enabled, so all connectivity (power and data) is provided by a single CAT-5 cable. The unDX2IO’s size and IO density make it easy to put Dante connectivity wherever it’s needed near the audio source or sink thereby eliminating costly and interference prone analog wiring.
    I/O Interfaces
  • Dante Ch: 2x2
See the product
monacor-international-dtta-2|monacor-international-dtta-2
  • Monacor

Monacor – DTTA-2

The DTTA-2 is a Dante I/O box, for converting analogue audio signals into Dante streams.  The DTTA-2 is a Dante I/O box, for converting analogue audio signals into Dante streams.
  • 2 x microphone/line input (XLR, bal.)
  • 1 x aux input (3.5 mm stereo jack)
  • 1 x Dante™ output (EtherCon/RJ45)
  • 1 x monitor output (3.5 mm stereo jack)
  • Gain adjustable via recessed potentiometer (0-60 dB)
  • Individually switchable 12 V phantom power for the inputs
  • Encoding/decoding: 16/24/32 bits
  • Sample rates: 48/88.2/96
    I/O Interfaces
See the product
