Panasonic - WX-SE200DN

Panasonic – WX-SE200DN

Product Information

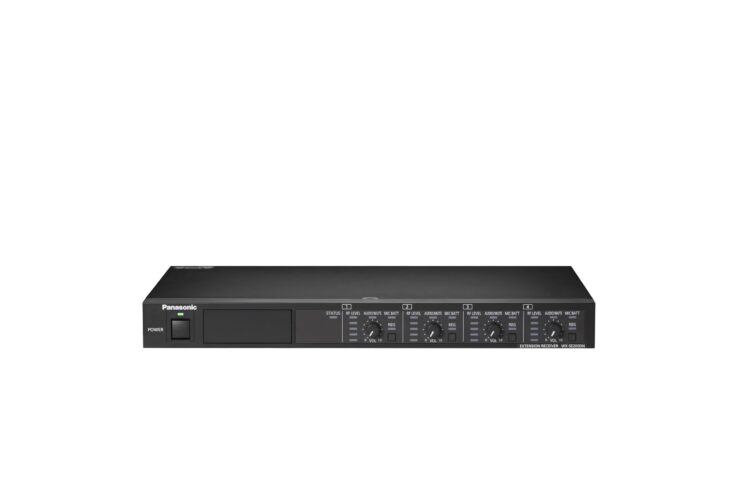

Designed to be used with Panasonic’s WX-SR204 or WX-SR204DN 4-channel wireless mic receivers, the WX-SE200DN Dante expansion receiver allows you to add up to 4 additional wireless microphone channels an existing Panasonic 4-channel system
without the need to add an additional antenna to the system. Choose between Panasonic’s WX-ST200 handheld mics and/or WX-ST400 lavalier mic + wireless bodypacks) for microphone options. Perfect for classrooms, conference rooms, auditoriums, museums, retail, and bars / restaurants, the WX-SE200DN features a RJ45 (CAT5 / CAT5e / CAT6) connection to the Panasonic WX-SR204 or WX-SR204DN 4-channel wireless receivers, and Dante primary and secondary connections for independent channel outputs, external audio input and a mix output. LEDs on the front panel show the system status during startup & microphone pairing, antenna status during operation, and an LED indicator of when the receiver is being controlled remotely. Ships with rack ears for easy rack mount installation.

DMS-1011C/D

Features:

Adopting Zenwin's original digital conference technology, in compliance with the IEC60914 international standard
Exquisite and elegant countertop structure, ergonomic and modern, mainly used in high-end conferences and other professional occasions
Using zinc/aluminum alloy material, anodizing process, CNC precision machining high gloss edge
Easy to adjust, durable, small, and can be repeatedly swung. The goose neck can be bent to quickly and freely fix the microphone head in the appropriate position
The pure speech conference unit is equipped with a 0.96-inch color screen displaying conference mode, conference unit ID number, and chairman/representative function;
Independently adjust the microphone gain, which can be adjusted on the microphone or computer management software to make speakers speak more smoothly at different volumes;
Double layered windproof sponge cover can reduce the occurrence of indecent jet and other wind sounds during speech
Built in high-performance DSP audio chip, optimized audio signal, restored vocals, and excellent sound quality
Two color LED indicator light, speaking in green; Flashing red when applying to speak and setting ID;
The unit comes with a 1.5-meter Category 6 shielded Ethernet cable;
The ID number of the microphone unit can be assigned to the conference unit ID through the ID switch of the conference host;

Microphones

See the product

Sennheiser

Sennheiser EW-DX EM 4 Dante

Four-channel digital full-rack (19") receiver with internal PSU and Dante® for use with Evolution Wireless Digital handheld, bodypack and tablestand transmitters. Extended 88 MHz switching bandwidth, intermodulation-free operation [intermodulation-free equidistant channel spacing] for up to 293 channels with secure AES 256 encryption and four modular network ports.

Microphones

See the product

Shure

Shure – MXA910

Microflex Advance Ceiling Arrays provide configurable and invisible coverage from above for rooms of any size, shape or application.

Shure Microflex Advance array microphones feature patent-pending new technologies that fundamentally change voice coverage and capture in AV conferencing environments. They feature new Shure software tools that enable AV conference room designers to be more creative and conference managers to be more productive.

Microphones

See the product

Panasonic – WX-SE200DN

Product Information

Similar Products

DMS-1011C/D

Sennheiser EW-DX EM 4 Dante

Shure – MXA910
