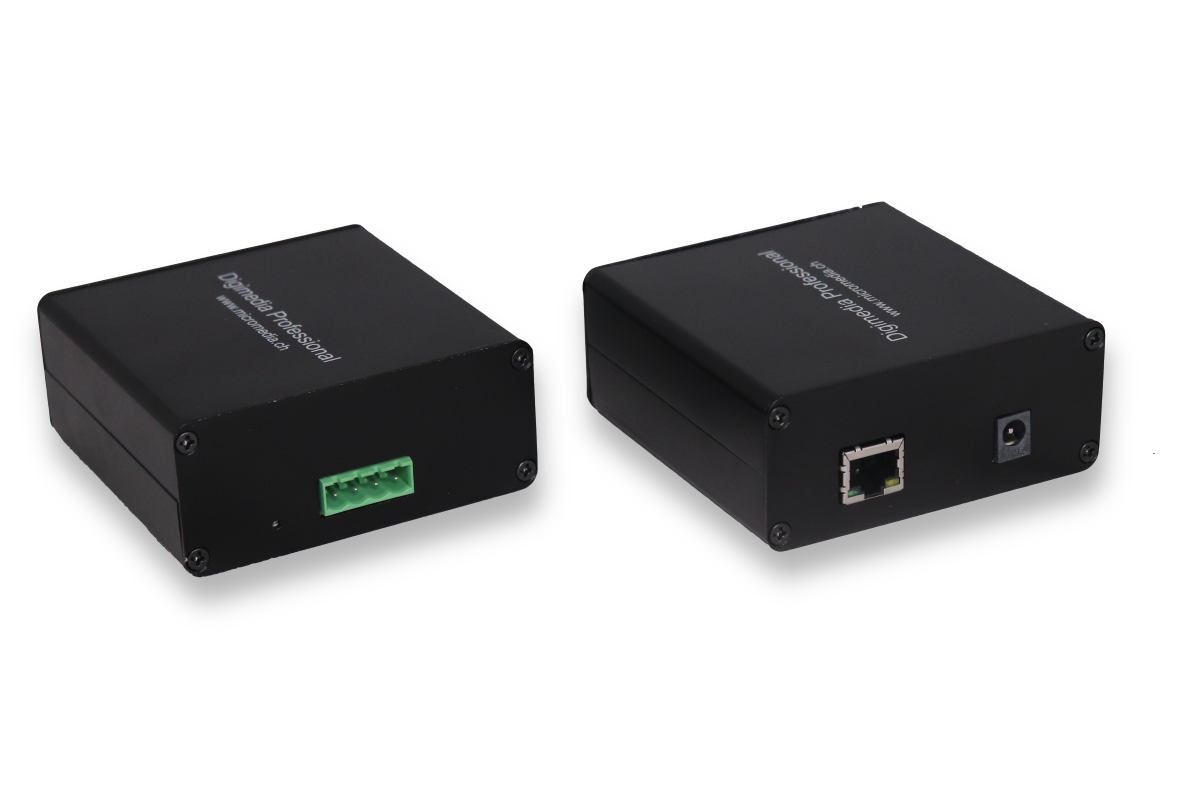

Micromedia – Digimedia AMP DC

I/O Interfaces

More details

Similar Products

ru-lb4p_400px|ru-lb4p_400px
  • RDL

RDL – RU-LB4P

The RU-LB4 is a high quality line-level bi-directional Dante network interface. The RU-LB4 converts four line-level audio sources to Dante network channels, and four Dante network audio channels to balanced line level. Input gain trimmers and LED audio level indicators are provided. Model RU-LB4P operates from PoE. The RU-LB4 is a high quality line-level bi-directional Dante network interface. The RU-LB4 converts four line-level audio sources to Dante network channels, and four Dante network audio signals to balanced line level. The line level inputs accept unbalanced or balanced signals. Line-level outputs are balanced. The front panel features signal LEDs that indicate audio presence for each of the received network signal channels and a gain trimmer with an associated Dual-LED VU meter for each audio input.  Balanced +4 dBu audio levels correspond to a network digital audio level of -18 dBFS. The noise floor is better than 80 dB below operating level. The RU-LB4 is also available in a PoE version (RU-LB4P). If PoE power and an external 24 Vdc supply are both feeding an RU-LB4P, the unit will run from the external supply and will seamlessly switch over to PoE power upon loss of the external supply.
    I/O Interfaces
See the product
sound-devices-md-4_1200px|sound-devices-md-4_1200px
  • Sound Devices

Sound Devices – MD-4

The MD-4 4x4 Analog-to-Dante Interface with Headphone Monitor is a simple, high-performance interface for connecting analog audio to Dante™ audio networks. The MD-4 4x4 Analog-to-Dante Interface with Headphone Monitor is a simple, high-performance interface for connecting analog audio to Dante™ audio networks. Four high-gain microphone or line-level inputs are available for connection to a Dante audio network. Additionally, four Dante signals can be sent to its four balanced analog outputs. Inputs or outputs can be routed to headphones for signal monitoring and metering. The MD-4 is an ideal companion in a rack with the Sound Devices 970 audio recorder. Key Features:
  • Four front-panel, balanced, analog, mic or line level inputs with 48 V phantom power and high-pass filter
  • Inputs accept mic or line level, and appear as Dante sends (transmit)
  • Eight-segment LED meter for each input
  • Four Dante signals (receiver) to four rear-panel XLR balanced-analog outputs
  • Headphone monitoring with LED level meters, with front and rear panel headphone output
  • Built-in AC power supply (100-240 V, 50/60 Hz on IEC C14) or 11-18 VDC powering (4-pin XLR)
  • Durable 1-U rackmount chassis
    I/O Interfaces
  • Dante Ch: 4x4
  • 24-bit
See the product
