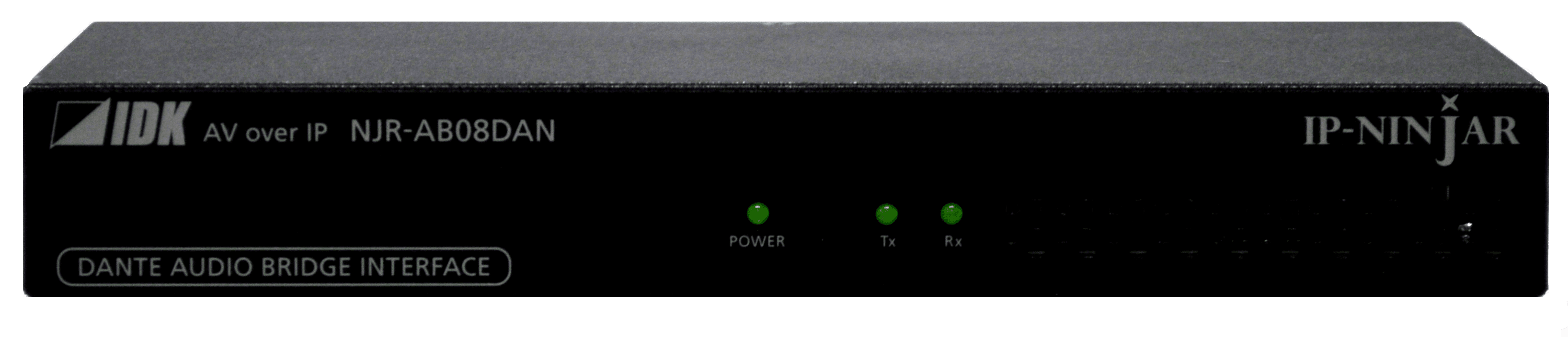

NJR-AB08DAN

Product Information

The NJR-AB08DAN is an audio bridge interface that converts audio signal protocols between IP-NINJAR and Dante networks. The NJR-AB08DAN converts audio packet on the IP-NINJAR network into the suitable Dante packets and vice versa for routing signals efficiently to the correct destination. It supports up to 8×8 audio I/O channels.

Transcode Audio signal between IP- NINJAR (SDVoE) and Dante protocol
Receives up to four (4) audio streams from IP-NINJAR transmitters and output as Dante protocol up to eight (8) channels
Receives up to 8 channel Dante audio from Dante devices and output as IP-NINJAR (SDVoE) protocol up to four (4) audio streams
Dante audio embedded on HDMI signal at IP-NINJAR receiver
Dante audio de-embedded to analog audio signal at IP-NINJAR receiver

FOR-A – FA-9600

The FA-9600 dual channel signal processor simplifies all types of video conversion and offers a wide range of audio processing.

The FA-9600 is much more than a basic frame synchronizer. With optional expansion cards and software, the unit offers MADI/Dante/analog audio I/O, 12G-SDI/Quad Link 3G-SDI I/O, up/down/cross conversion, HDR/SDR conversion, and SFP+ module support.

・ 3G/HD/SD-SDI 2 inputs and 2 outputs with distribution output by each output, HDMI 1 input and 1 output.

・ Dual channel of frame sync, proc amp, colorimetry converter, color corrector, frame delay and clip function.

・ Dual channel embedded audio (16 channels, HDMI is up to 8 channels); AES/EBU I/O selectable for 4 inputs, 2 inputs/2outputs, or 4 outputs. (4 channels of stereo, unbalanced); audio multiplex and demultiplex function.

・ Gain control, SRC, down mix, re-map, mute, and audio delay functions.

・ Optional audio interface cards are available: AES/EBU I/O, analog audio I/O, MADI interface, or Dante interface.

Audio Embedders & De-Embedders

Dante Ch: 32x32
16-bit, 24-bit

See the product

ZenWin

ZW-B404

Features

Microphone/line input: 4 x balanced audio inputs.
Line output: 4x balanced audio output.
Dante：1 x Dante ® Ethernet interface connector, supporting POE power supply; 1 x Dante ® Ethernet interface connector; Two interfaces implement data exchange function.
DC 12V: A DC connector used for connecting DC 12V1A power adapters.
Input interface: 4-channel microphone/line input,
3-pin green wiring terminal Output interface: 4-channel line output,
3-pin green terminal block Gain: Input: 0~+48dB, 6dB per step;
Output: -60~0dB,
1dB per step Maximum level: Input:+18dBu @ 0dB input gain;
Output:+18dBu @ 0dB output gain
Input impedance:>1.8k Ω Effective
Input Noise (EIN): -119dB @ 48dB gain
Effective output noise:<-79dBu @ 0dB gain
Harmonic distortion:<0.05%
Sampling rate: 44.1kHz or 48kHz

Audio Embedders & De-Embedders

Dante Ch: 4x4
24-bit

See the product

Aurora Multimedia

Aurora Multimedia – HTE-RX2

The HTE-RX2 is an HDBaseT receiver. The HTE-RX2 is an HDBaseT receiver.

4K60 4:4:4 HDR 18Gbps
100m (330ft) with Unshielded Cable
HDMI® 2.0/HDCP 2.2
Audio DSP & Dante™/AES67 Options 2 or 8 Channel
Operate & Power both TX & RX from a PoE Switch
HDMI® Output(s)
10/100 LAN Port(s)
USB 2.0 Device/Host with Selectable Direction
IP, RS-232 & IR Control

Audio Embedders & De-Embedders

Dante Ch: 8x0
AES67 Enabled

See the product
