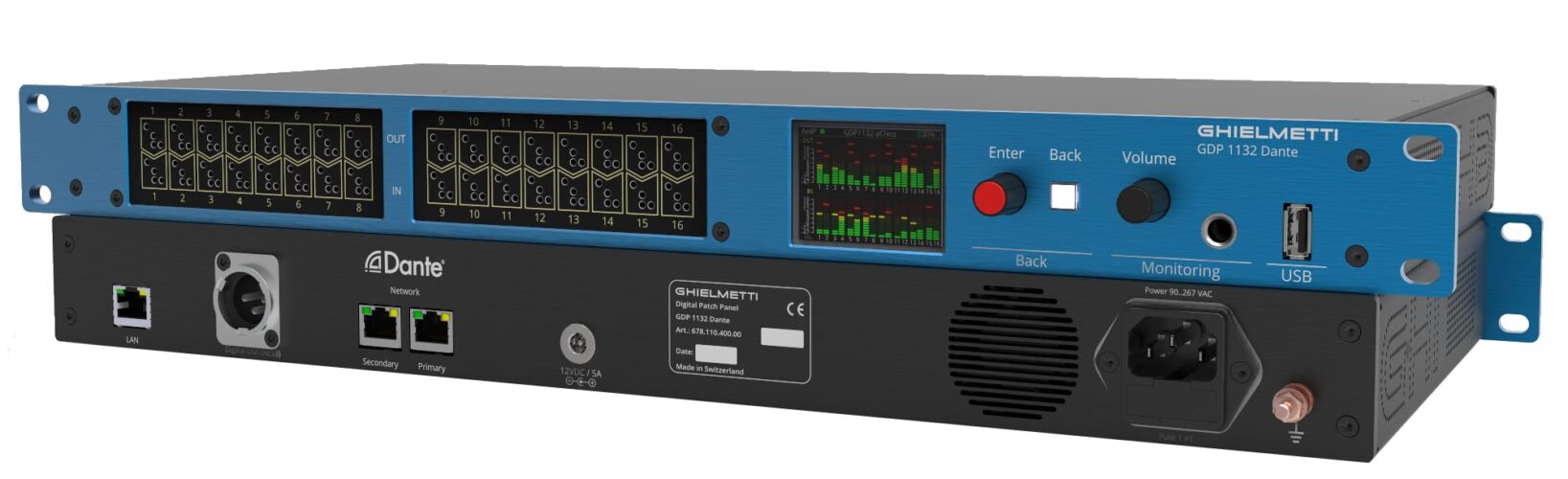

Ghielmetti – GDP 1132 Dante Plus

I/O Interfaces

More details

Similar Products

8793cc498fab9435514e1d90f1fc0d37
  • NTP

NTP – Penta 721s

PENTA 721s is a new generation audio router and audio distribution interface from NTP Technology, which provides a versatile and flexible interface for signal distribution of analog, and digital audio via AES/EBU and MADI, as well as routing via IP Gigabit Ethernet and optical fibre networks including Dante. It has all the features of the Penta 721 with the addition of a card slot that can accept one of the 7 Penta interface cards to exactly match your I/O requirements.

PENTA 721s is a compact 1U digital audio interface designed for stand-alone use in recording studios, radio stations and stage venues.

It comes as standard with the following I/O:

  • Eight channel AES/EBU input/output channels
  • MADI in/out
  • Two IP Audio Ethernet in/outs connected to a 64-channel Dante interface, with support for AES67 with SAP & Dante Domain Manager
  • Card slot for one of seven optional NTP I/O and processing cards, and a slot for optional Dual MADI Module
    I/O Interfaces
  • Dante Ch: 64x64
  • 24-bit
See the product
aurora-ipx-tcw3_480px|aurora-ipx-tcw3_480px
  • Aurora Multimedia

Aurora Multimedia – IPX-TCW3

Utilizing Aurora’s IPBaseT™ technology, which combines various IP/AV standards to work together as one, the IPX-TCW3 Series provides one of the most advanced IP Streaming solutions on the market.  Utilizing Aurora’s IPBaseT™ technology, which combines various IP/AV standards to work together as one, the IPX-TCW3 Series provides one of the most advanced IP Streaming solutions on the market. It is the industry’s first 4K2K IP wall plate with zero compression and latency based on BlueRiver NT™ platform. Using a transmitter (encoder) and receiver (decoder), respectively, used to be the standard – until now. The IPX-TCW3 Series can be set up as either one to make installation, inventory, and troubleshooting easier. Another industry first is the option slot to add other IP capabilities, like ExtremeUSB® (USB 2.0 over IP) or Dante® audio, for a more complete, distributed system. Audio, video, data, and control can be sent securely to one or many IPX-TCW3 transceiver units using off-the-shelf 10G Fiber or CAT Ethernet switches. When the IPX-TCW3 is set up to be a transmitter, the 2 HDMI inputs become a source switch and the HDMI output becomes a potential loop out. When set up as a receiver, a user can select the local HDMI inputs or an IP source. Seamless switching of the sources further enhances the presentation. Regardless of how the IPX-TCW3 is set up, the audio can be de-embedded at any location, break away, and/or be sent to or received from a Dante® enabled device. The USB 2.0 option is also flexible, working as a KVM and/or a high-speed data transfer (480Mbps) for memory sticks. Choice is important. That’s why the IPX-TCW3-F has an SFP+ port that can use single or multi-mode fiber and the IPX-TCW3-C can use Category 5e/6/6A – making the IPX-TCW3-F the ultimate AV IP product on the market today.
    I/O Interfaces
See the product
dd-rn40
  • RDL

RDL – DD-RN40

The DD-RN40 is a complete wall-mounted Dante audio network interface. It features four XLR mic or line inputs on the front panels and two line outputs on a rear-panel detachable terminal block. The module is configured and adjusted using RDL CONSOLE or other network control software. The DD-RN40 fits a standard US dual-gang electrical box or an RDL WB-2 back box for installations in thinner European or equivalent walls. The DD-RN40 is PoE powered, and is available in multiple finishes with optional customized graphics.

Mic/Line to network section

The four XLR inputs are each converted to a separate Dante network transmit channel. Three gain settings are software-selectable for both the mic and line input ranges to match condenser or dynamic mic levels and standard line levels. P48 phantom voltage may be software enabled when an input is set for mic level.

Network to line section

Two Dante audio channels are converted to balanced line level. Each output provides +4 dBu balanced for a network digital audio level of -18 dBFS. Each output is equipped with a software controlled attenuator adjustable in 1 dB steps to a maximum attenuation of 62 dB then OFF. The outputs are connected through a detachable terminal block.

The outputs are intended for connection to RDL AMS connectors mounted in Decora®-style plates that match the DD-RN40. AMS audio connectors include RCA, Mini and XLR jacks. The output plate may be located together with the DD-RN40 in a triple gang box or may be mounted remotely in a single box.

Valid PoE power and synchronization to the Dante network are indicated by green LEDs visible from the front of the unit.

The DD-RN40 is a professional grade product with RDL mic preamplifiers for studio quality fidelity and low noise performance, coupled through XLR jacks housed in a steel chassis with dual powder-coated or stainless steel Decora front plates.

The DD-RN40’s superior performance specifications make it ideally suited to installations requiring network control and exceptional value in commercial networked audio systems. This full-featured product is engineered and manufactured in the U.S.A for continuous duty in demanding installations. Designed to outperform. Built to last.

    I/O Interfaces
  • Dante Ch: 2x4
  • 24-bit
See the product
