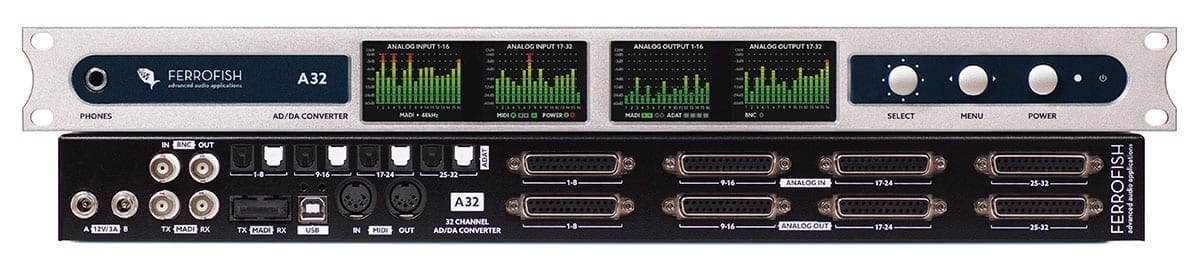

Ferrofish – A32 DANTE


More details

Similar Products

Tranfer-back
  • FRENETIK

FRENETIK – Transfer

Allows the conversion and distribution of 4 analog sources on Dante™ network • detachable euroblock input/output connectors • PoE (provided) or 12V power supply (not provided)

Technical data:

Type: Dante™ interface 4x4
Input Connectors: 4 x euroblock
Output Connectors: 4 x euroblock
Audio network connector: RJ45
Input impedance: > 1.8 kohms
Maximum input level: +8 dBu
Output impedance: 200 ohms
Maximum output level: + 20 dBu
Frequency response: 20 Hz - 20 kHz (+/- 1 dB)
THD+N: < 0.02%
Power supply: PoE 802.3 af (provided) or 12 V external (not provided)
Consumption: 10 W max
Dimensions: 52 x 81 x 121 mm
Weight: 357 g

    I/O Interfaces
micromedia-Digimedia-DIO-RCA-TOS-Pro_1200px|micromedia-Digimedia-DIO-RCA-TOS-Pro_1200px
  • Micromedia

Micromedia – Digimedia RCA TOS Pro

Digimedia DIO RCA TOS Pro is a 2 channel Dante™ interface with digital SPDIF input and output. Input has SRC and is specially designed to connect CD and DVD players, satellite and digital radio tuners and DJ-consoles to Dante™ network. There is Dante Domain Manager and AES67 support build in. Digimedia DIO RCA TOS Pro is a 2 channel Dante™ interface with digital SPDIF input and output. Input has SRC and is specially designed to connect CD and DVD players, satellite and digital radio tuners and DJ-consoles to Dante™ network. There is Dante Domain Manager and AES67 support build in.
    I/O Interfaces
pnaid081a
  • Profitt

Profitt – PN-AID-081

Blocks are designed for:

connecting analog or digital AES3 audio signals to sound studios and audio mixers using the AES67 or Dante protocol;

transmission of audio signals over Ethernet 100/1000 BaseT;

performing the function of an 8x8 audio switch and creating a distributed network of switches with a common switching field, limited network bandwidth (one audio channel takes about 1 Mbps).

Supports up to 16 channels of balanced analog audio (8 inputs and 8 outputs) or up to 8 channels of AES 3

digital audio (4 inputs and 4 outputs). The type of audio signals (' xxxx ') for inputs and outputs is selected by the user in the device code independently of each other. The first pair of ' xx ' defines the input signals and the second pair of ' xx ' the output signals (' A ' indicates 2 analog stereo signals; ' E ' indicates 2 AES digital signals ). An additional Ethernet port provides connection to a redundant ( Redundant )) audio transmission networks or device cascading. Management and monitoring is carried out over an Ethernet network using a proprietary program Dante Controller . HDB44 audio connectors.

    I/O Interfaces
