Product Information
The Iyo Dante® is a cost-effective family of microphone/line Dante audio-over-IP (AoIP) interfaces in a 1U rack mount format. The 8.8LR provides 8×8 balanced analog audio inputs and outputs. Each input accommodates microphone through line level signals with a gain range of -60 to +24dBu. +48V phantom power is individually switchable on each input. Output levels are configurable up to +24dBu. With RJ-45/StudioHub + GPIO Connector close-up.

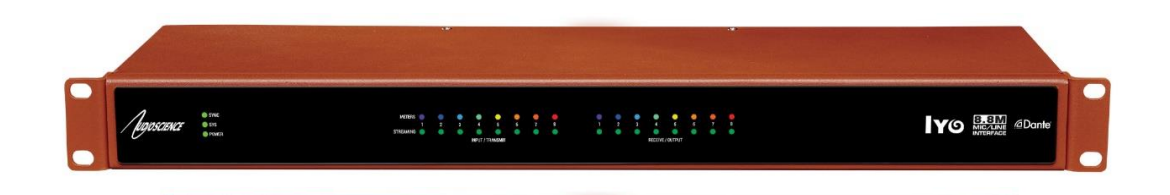

RGB LEDs on the Iyo’s front panel show per channel audio levels and streaming status.
The Iyo family feature an embedded web server, allowing configuration and monitoring of input and output levels. Routing is achieved using the Dante Controller.
Power is provided from a built-in universal AC power supply. Redundant power is available using an external 12VDC supply via a locking 2.1mm jack.
Specifications
- Dante Ch: 8x8
- Bit Depth: 16-bit, 24-bit, 32-bit
- Sample Rate: 44.1kHz, 48kHz, 88.2kHz, 96kHz
- AES67 Enabled
