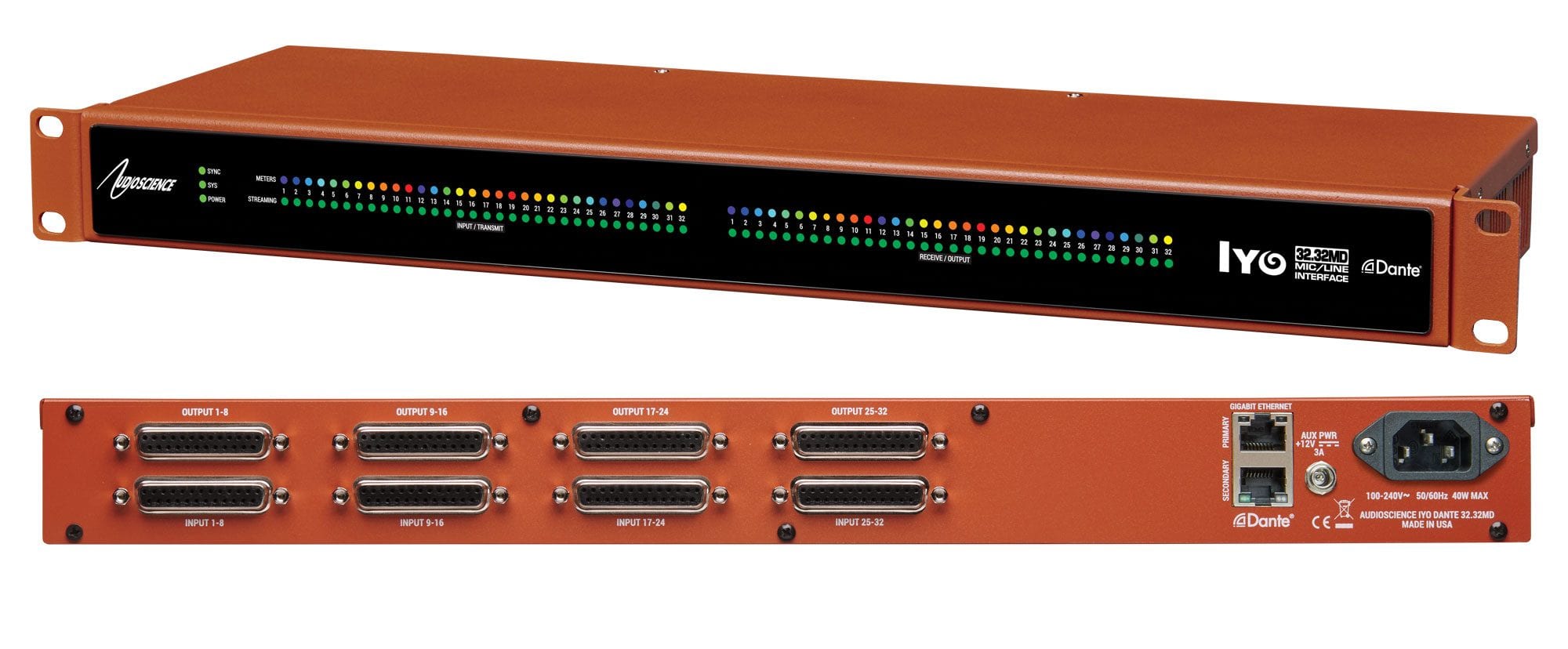

Product Information
The Iyo Dante® is a
cost-effective family of microphone/line Dante audio-over-IP (AoIP) interfaces
in a 1U rack mount format.
The 32.32MD provides 32×32 balanced analog audio inputs and outputs. Each input
accommodates microphone through line level signals with a gain range of -60 to
+24dBu. +48V phantom power is individually switchable on each input. Output
levels are configurable up to +24dBu. With DB-25/AES59 terminations.
RGB LEDs on the Iyo’s front panel show per channel audio levels and streaming
status.
The Iyo family feature an embedded web server, allowing configuration and
monitoring of input and output levels. Routing is achieved using the Dante
Controller.
Power is provided from a built-in universal AC power supply. Redundant power is
available using an external 12VDC supply via a locking 2.1mm jack.
All units can also be operated in Livewire+ AES67 interoperability mode.
Specifications
- Dante Ch: 32x32
- Bit Depth: 24-bit
- Sample Rate: 44.1kHz, 48kHz, 96kHz
- AES67 Enabled
