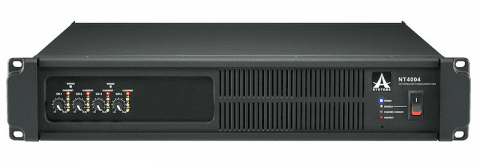

Asystems – NT4004D


Similar Products

201982132038
  • BARE

BARE – WD60U

The network audio power amplifier integrates a four-way digital power amplifier module. Signal processing and power amplification are solved on one motherboard, which shortens the signal path and simplifies engineering wiring.

  • Built-in 4 x 600W / 8 Ω ( 800W / 4 Ω) digital power amplifier
  • Professional PC- side control software is easy to use, Ethernet TCP / IP online management, can manage every device in the system at the same time
  • ★ DANTE network audio technology, low latency without interference, without loss of smooth and full sound quality
  • Network dual backup, multiple devices can be connected hand in hand.
  • ★ Automatic or manual network IP configuration, can be named independently for easy identification in the network
  • Automatic protection memory function in case of power failure
Output Power
Output power 8 ohms: 4x600W
Output power 4 ohms: 4x800W
Bridge mode 8 ohms: 2x 1600W
Power amplifier
Maximum efficiency of 90%, two-channel digital power amplifier
Frequency Range
20Hz-20kHz
Signal to noise ratio
100dB / 95dB
Sensitivity
26dB / 1.4V / 32dB
Crosstalk
> 90dB
Damping coefficient
> 500
Voltage gain
40dB
Total harmonic distortion
< 0.1%
Voltage conversion frequency
> 70
Conversion time
<1.5
Features
Input: 2 DANTE signal inputs
Protect power
Single channel: short circuit, DC output, low impedance; equipment: ultra low / high voltage, temperature, overload
Operation mode
Stereo, mono, bridged
interface
Input: 2 x RJ45 Output: 4 x XLR (up to)
Unit delay
<1.5ms
sampling
48k
Dimensions (WxHxD) mm
485x90x320mm
Weight (kg)8kg
    Amplifiers
ev-tg5|ev-tg5
  • Electro Voice

Electro-Voice – TG5

2000 W per channel power amplifier. 2000 W per channel power amplifier.
  • High-level touring performance
  • Rugged, lightweight package
  • 2000 W per channel (2 Ω)
  • Grounded Bridge Class-H design
  • Switch-mode power supply
  • Microprocessor-controlled
  • Front LCD panel for operation-mode setup and monitoring
  • Slot for optional RCM-26 IRIS-Net-compatible DSP and control module
  • 11-level protection package
  • Only 31.4 lbs (14.2 kg)
    Amplifiers
ENNE_ED4-2000
  • ENNE

ED4-2000

The ED Series is a new digital amplifier launched by ENNE which has built-in high-accuracy DSP built-in router , supporting UDP and network monitoring. Supporting AES3 digital audio and Dante™ digital audio transport(only for models with Dante™),supporting Dante™/Analog automatic backup supporting both low-z and high-z output.
    Amplifiers
