Product Information

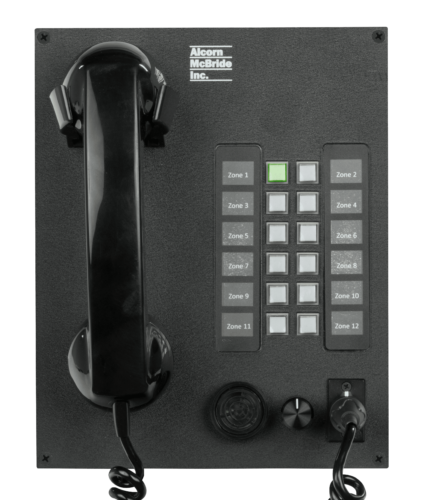

The V-Com VC12X station includes 12 illuminated buttons that are user-configurable for ring zone or breakaway functions. It includes a handset, a ringer, and level control. This is an off-the-shelf solution that is designed to mount in a standard 8″ x 10″ intercom box like the Hoffman C-P1612.
Alcorn McBride believe that intercom solutions should be a breeze to install and intuitive to operate. Just like their popular V-Page product line, they have designed their V-Com solutions to leverage industry-standard DSP platforms like Q-SYS while providing a simple button-based UI that just makes sense.
The V-Com VC12X station includes 12 illuminated buttons that are user-configurable for ring zone or breakaway functions. It includes a handset, a ringer, and level control. This is an off-the-shelf solution that is designed to mount in a standard 8″ x 10″ intercom box like the Hoffman C-P1612.
A single Ethernet cable provides network audio (Dante or AES67), power (PoE), and control between each V-Com station and the DSP device. It even supports SFP network modules for applications that require the station to be far away from the equipment room.
The Model 391 Dante Alerting Unit builds on the limited capabilities of the "beacon" or a "strobe" devices that are ubiquitous with analog party-line (PL) intercom systems and adds a broad range of new and enhanced features. The Model 391 will respond to 20 kHz tone "call" signals that are commonly utilized in both legacy analog and modern digital party-line intercom circuits. Upon detecting a call signal the Model 391 can provide a visual indicator, enable an audible "buzzer" output, and even activate an analog line output. Each of the Model 391's alerting resources can be individually optimized to meet the unique requirements of many applications. The STcontroller personal computer application is used to select from a wide range of operating choices. The compact, portable unit is compatible with Dante audio-over-Ethernet installations and requires only an Ethernet connection with Power-over-Ethernet (PoE) capabilities for operation. Typical Model 391 applications will include use in theaters, sports facilities, corporate events, and broadcast studios.
Key Features
