Aimline – ALX16 DANTE

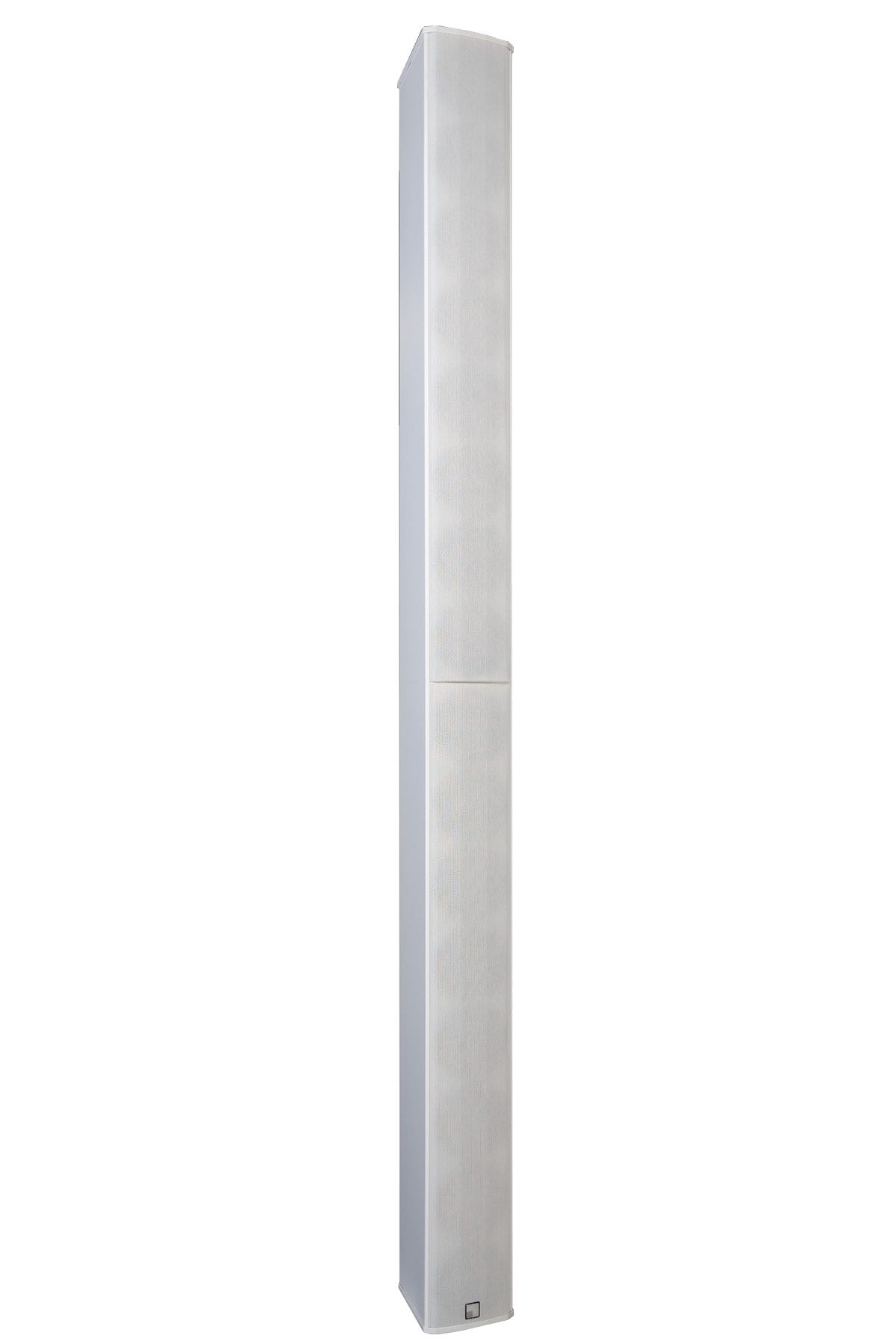

The Aimline ALX16 is a digital steerable active column-speaker with DANTE®-Input.

The Aimline ALX16 is a digital steerable active column-speaker with DANTE®-Input.

Main features

  • DANTE®-in- and out
  • Multibeam-technology
  • 4”-chassis with fiberglass-membrane
  • Acoustic centre for both beams variable from the bottom to the top
  • 3-D-beam for horizontal and vertically aiming
  • Strong SPL
  • Analogue and digital inputs
  • Networking over IP-protocol
  • Heavy-duty aluminium-enclosure in a slim design
  • A separate digital amp with its own digital signal processor drives each of the components.

This technology gives the benefit of being able to aim the acoustical energy up and down the room. This avoids energy waves hitting any walls, windows, glass and other hard surfaces resulting in unwanted reflections:

AIMLINE the sound to the audience.

The internal digital signal processor also enables a compressor, a gate, a 10-band-parametric equalizer and a delay to be placed into the audio-input path. With simple Windows-software every parameter can be set in real time. All speakers are recognized within a network by their IP-address.

ALX-cabinets can be fully monitored for surveillance-issues.

Thanks to its very small and unobtrusive enclosure the AIM­LINE-Speaker is a fit for most architecturally sensitive environment including mu­seums, churches, conference-rooms and many more challenging spaces and environments.

With its two-channel DANTE®-input integration into existing IP-networks as well as a direct integration to other DANTE®-enabled products is simple.
